Hyundai Kona: Dual Clutch Transmission Control System / Input shaft speed sensor 1 Schematic diagrams

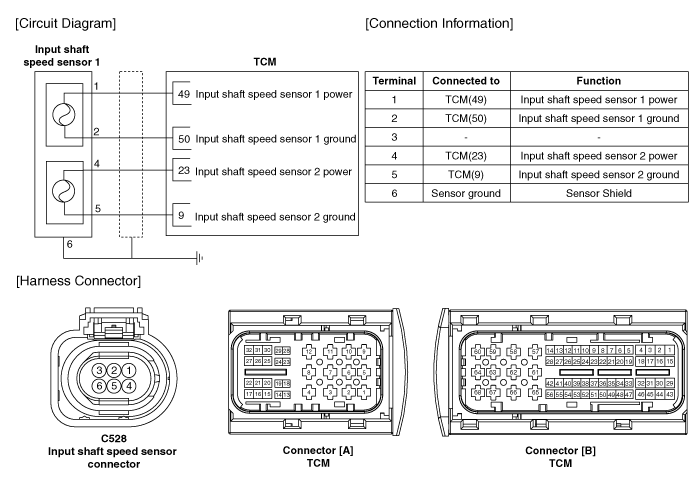

Circuit Diagram

Input shaft speed sensor 1 Description and operation
Description • Components location : DCT (Dual Clutch Transmission) • Function The input shaft speed sensor is import ...

Input shaft speed sensor 1 Repair procedures
Removal 1. Remove the cleaner assembly and air duct. (Refer to Engine Mechainical System - "Air Cleaner") 2. Remove the b ...
