Hyundai Kona: Dual Clutch Transmission Control System / Input shaft speed sensor 2 Schematic diagrams

Hyundai Kona (OS) 2018-2020 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Input shaft speed sensor 2 Schematic diagrams

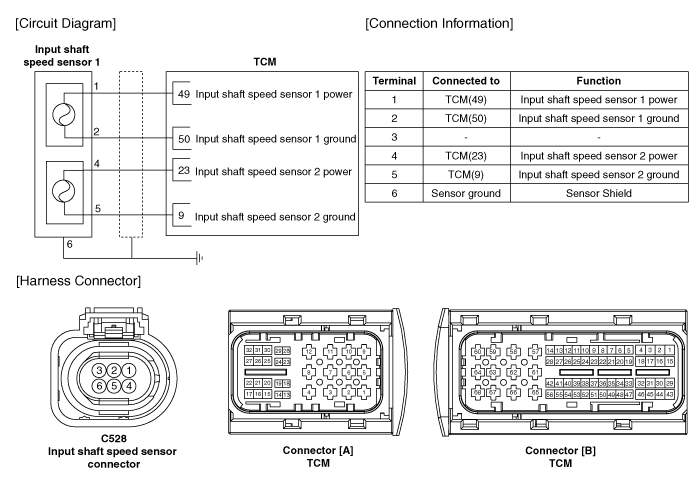

Circuit Diagram
