Hyundai Kona: Light bulbs / Interior light bulb replacement
Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp
.png)
.png)
.png)
.png)

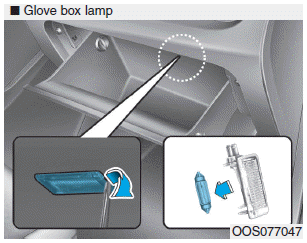

1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior light housing notches and snap the lens into place.
NOTICE
Be careful not to damage the cover, tab, and plastic housing.
License plate light bulb replacement
1. Using a flat-blade screwdriver, gently pry the lens cover from the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order. ...
