Hyundai Kona: Cylinder Head Assembly / Cylinder Head Cover Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Cover Components and components location

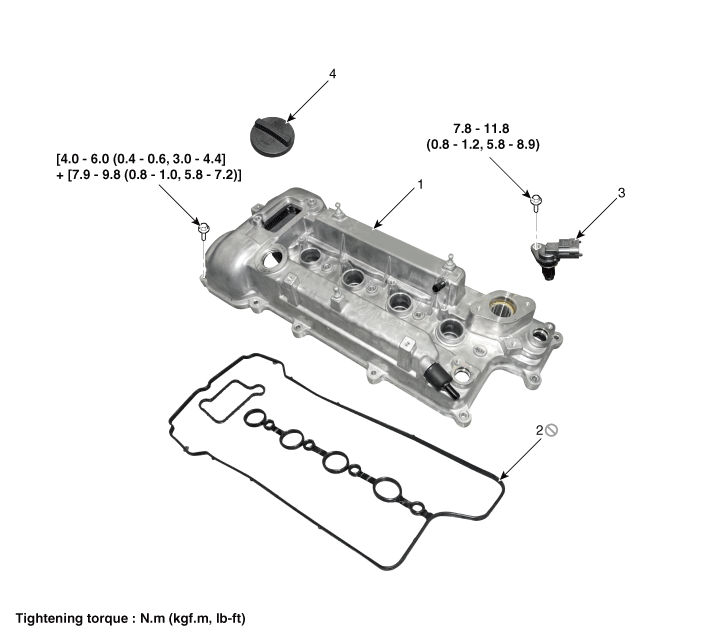

Components

1. Cylinder head cover
2. Cylinder head cover gasket
3. Camshaft position sensor (CMPS)
4. Oil filler cap
