Hyundai Kona: Brake System / Brake Pedal Components and components location

Hyundai Kona (OS) 2018-2023 Service Manual / Brake System / Brake System / Brake Pedal Components and components location

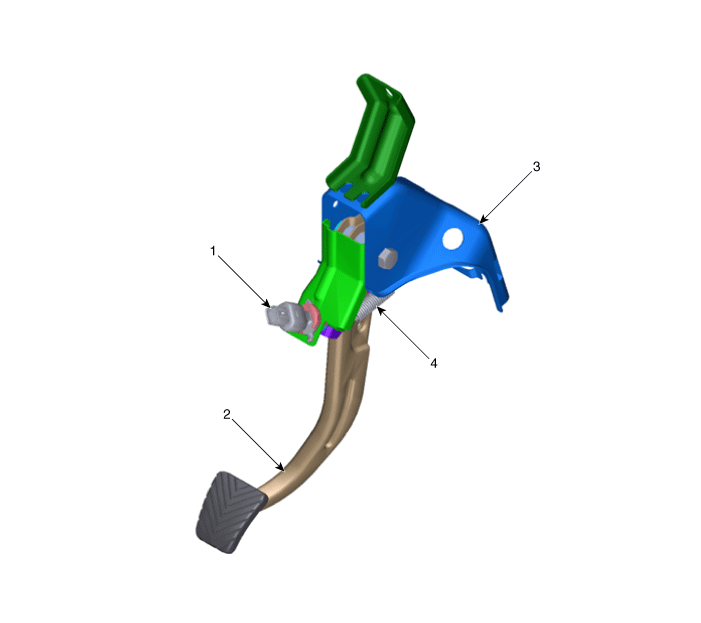

Components

1. Stop lamp switch
2. Brake pedal arm assembly

3. Brake member assembly
4. Return spring

Brake Line Repair procedures

Removal Brake Tube [VDC Control unit ↔ Master cylinder] 1. Turn ignition switch OFF and disconnect the battery negative (-) cable. 2. ...

Brake Pedal Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to ...
