Hyundai Kona: Brake System / Master Cylinder Components and components location
Hyundai Kona (OS) 2018-2026 Service Manual / Brake System / Brake System / Master Cylinder Components and components location

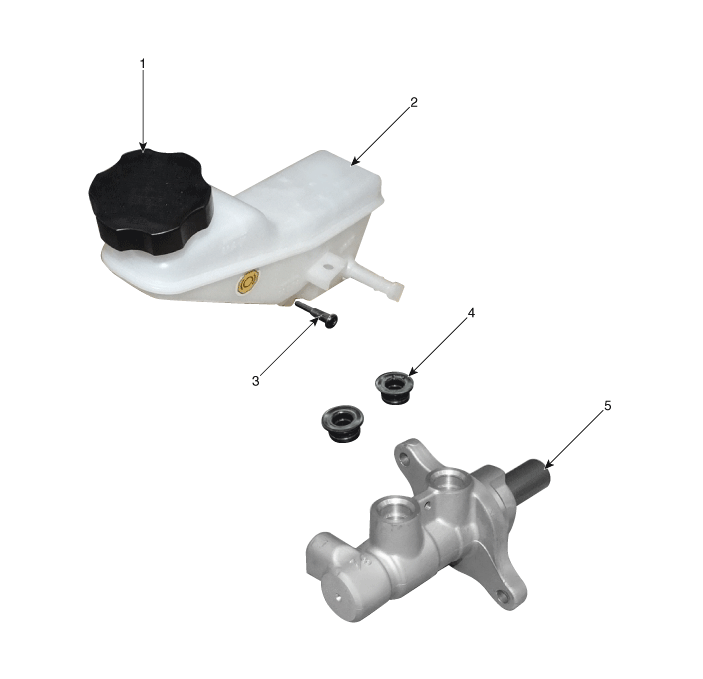

| Components |
| 1. Reservoir cap 2. Reservoir 3. Reservoir pin |
4. Grommet 5. Master cylinder |
Vacuum Pump Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Check the safty after uplift the vehicle with lift.
...
Master Cylinder Repair procedures
Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the air cleaner.
(Refer to Engine Mech ...
