Hyundai Kona: Light bulbs / License plate light bulb replacement
.png)

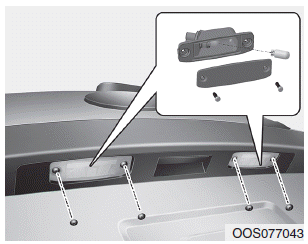

1. Using a flat-blade screwdriver, gently pry the lens cover from the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
High mounted stop lamp replacement
If the high mounted stop lamp does not operate, we recommend that you contact
an authorized HYUNDAI dealer. ...
Interior light bulb replacement
Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp
1. Using a flat-head screwdriver, gently pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straig ...
