Hyundai Kona: Power Door Mirrors / Power Door Mirror Actuator Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator Components and components location

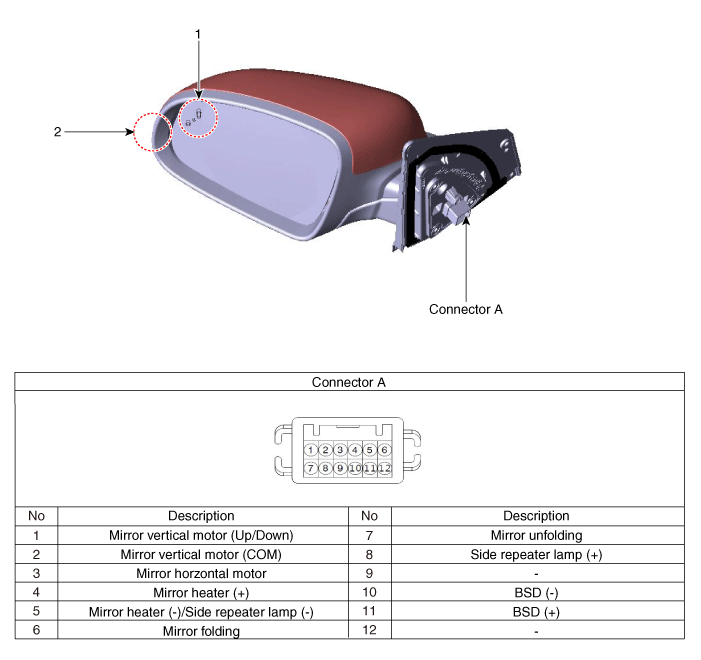

Components

1. BCW Indicator
2. Side repeater lamp

Power Door Mirror Switch Repair procedures
Inspection [Power Window Switch] 1. Disconnect the negative (-) battery terminal. 2. Remove the driver door trim. ...

Power Door Mirror Actuator Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door quadrant inner cover (A). ...
