Hyundai Kona: Rear Seat Belt / Rear Seat Belt Buckle Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle Components and components location

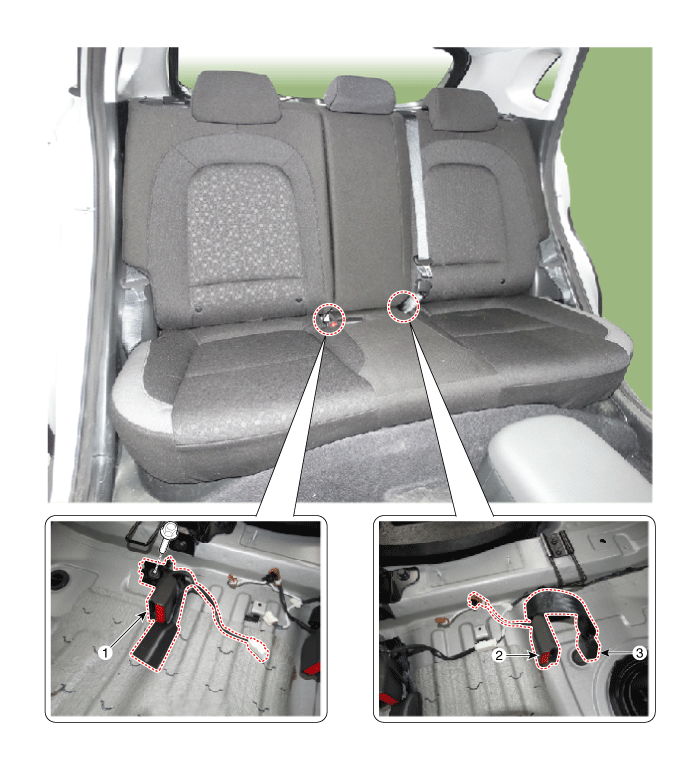

Component Location

1. Rear seat belt buckle [RH]
2. Rear seat belt buckle [LH]
3. Rear center seat belt buckle
