Hyundai Kona: Fuses And Relays / Relay Box (Engine Compartment) Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and components location

Component Location

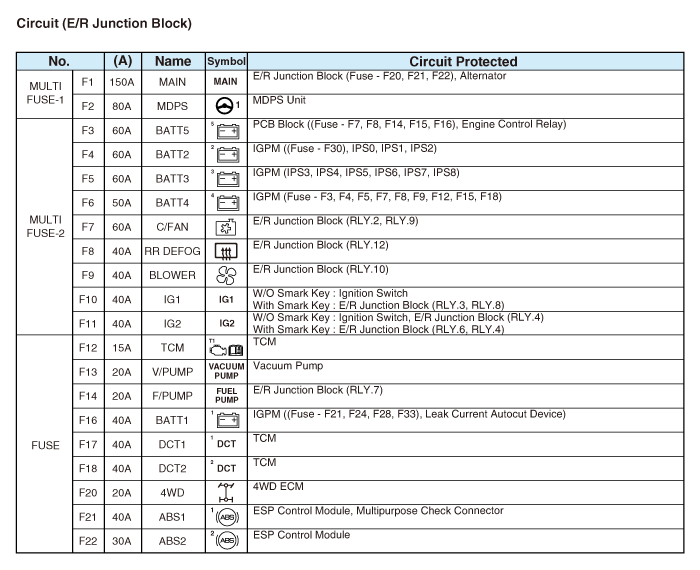

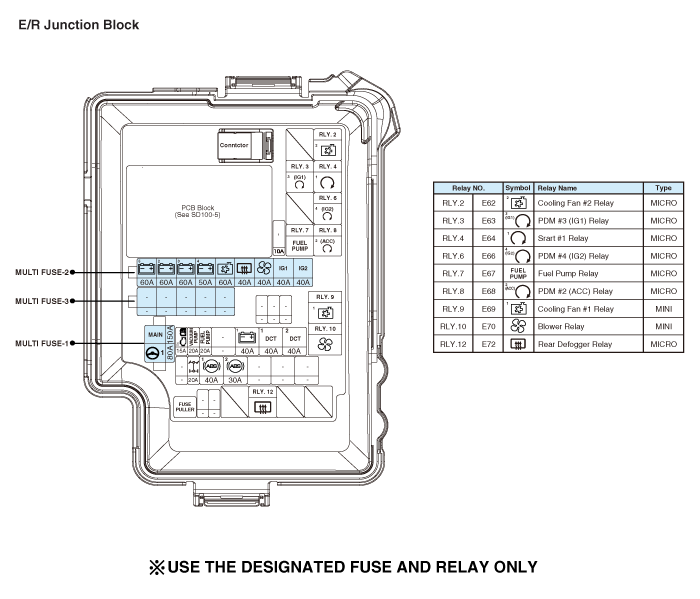

Engine Room Junction Block

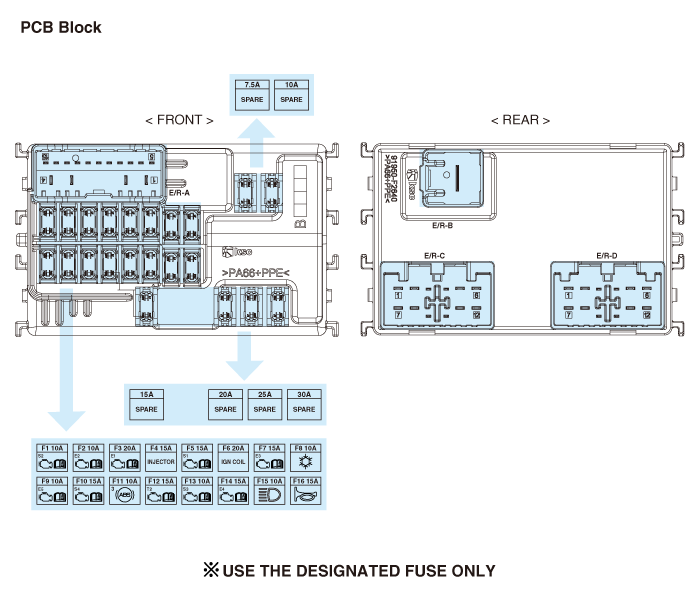

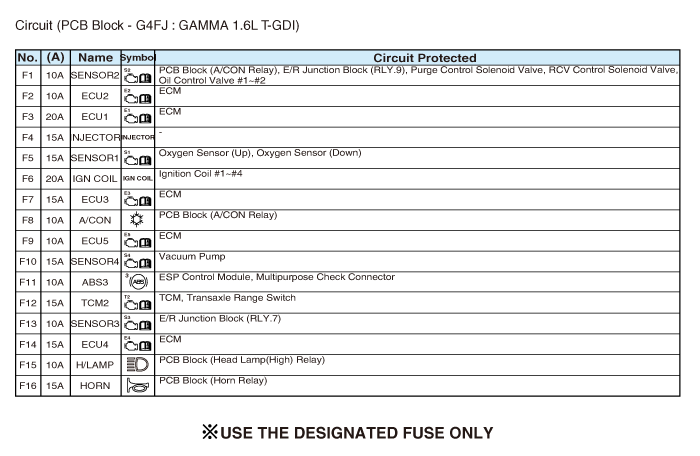

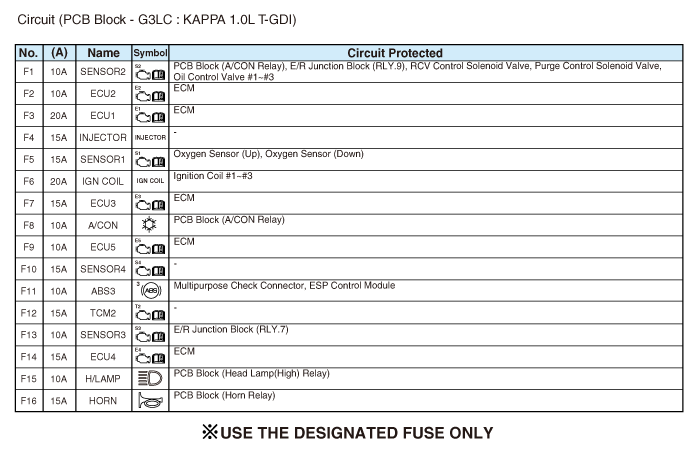

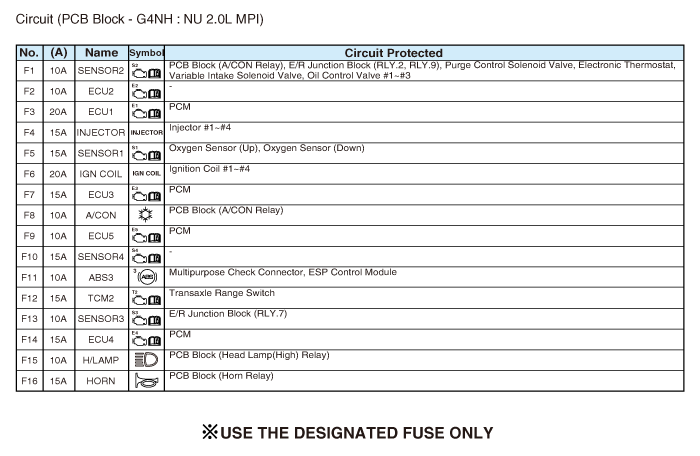

Metal Core Block (PCB)

Components and components location
Component Location [Engine Room] 1. Engine room junction block [Interior Relay] 1. Smart junction b ...

Relay Box (Engine Compartment) Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay bloc ...
