Hyundai Kona: Repair procedures / Side Impact Sensor (SIS) Components and components location

Hyundai Kona (OS) 2018-2026 Service Manual / Restraint / Repair procedures / Side Impact Sensor (SIS) Components and components location

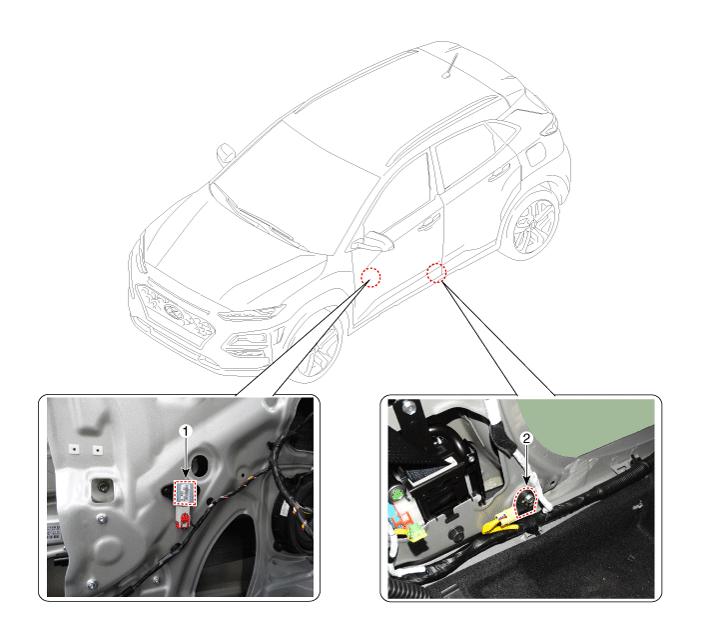

Components

1. Front Pressure Side Impact Sensor (P-SIS)
2. Front Gravity Side Impact Sensor (G-SIS)
