| Smart Key |
Smart Key Code Saving
| 1. |
Connect the DLC cable of GDS to the data link connector (16 pins) in
driver side crash pad lower panel, turn the power on GDS.
|
| 2. |
Select the vehicle model and then do "Smart Key Code Saving".
|
| 3. |
After selecting "Smart Key Teaching" menu, push "Enter" key, then the
screen will be shown as below.
|
| 4. |
After having the teaching smart key, push "ENTER" key.
|
| 5. |

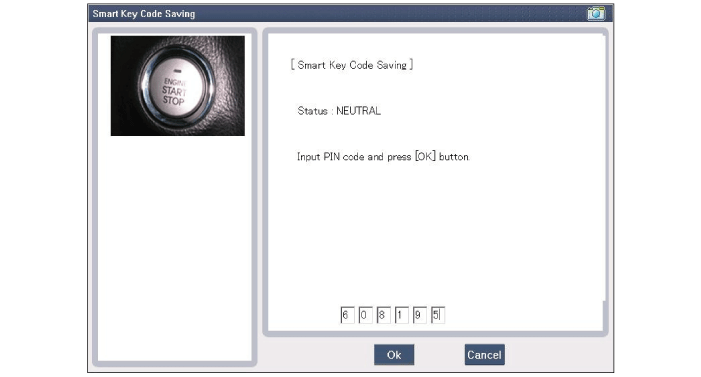

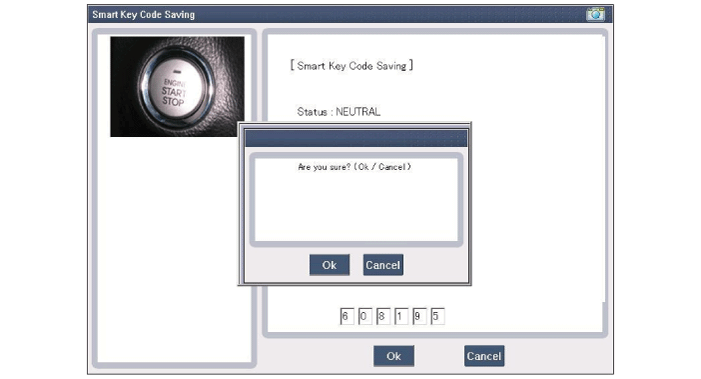

Input the "Pin Code" for first key teaching.
|
| 6. |
Press the SSB with smart key within 5 sec after pressing "OK".
|
| 7. |

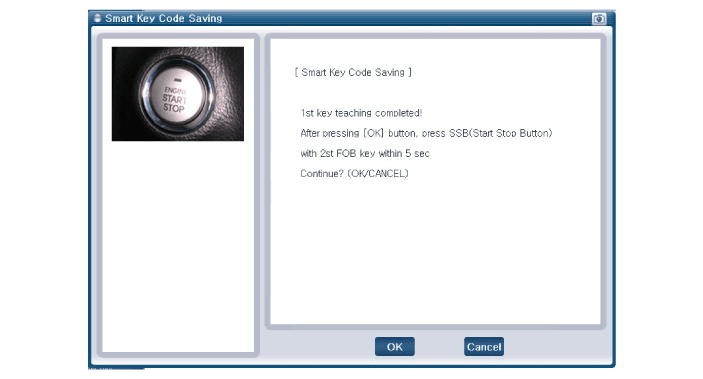

Confirm the message "First Key Teaching Completed".
|
| 8. |
Press the SSB with smart key within 5 sec after pressing "OK".
|
| 9. |

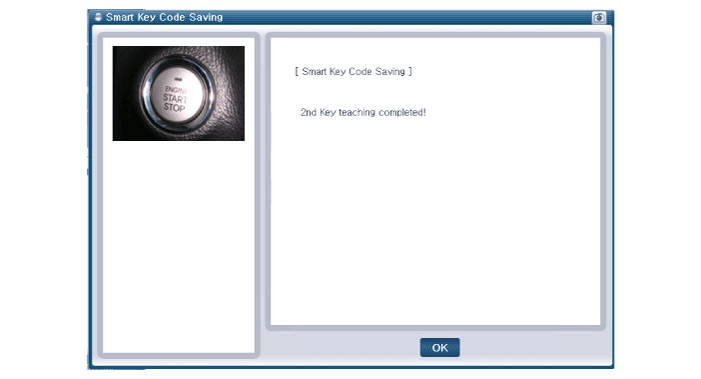

Confirm the message "Second Key Teaching Completed".
|
| 10. |

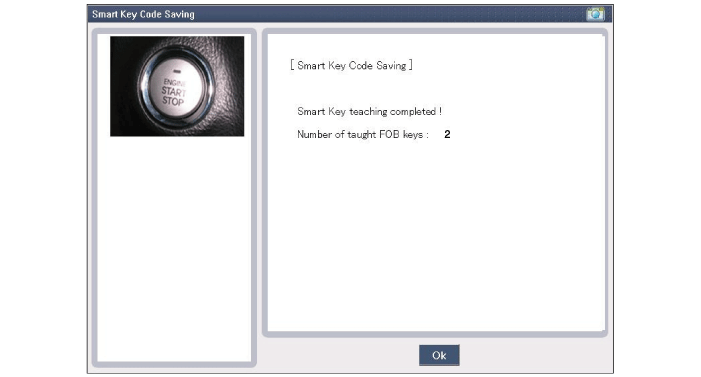

Then the screen will be shown as below when key teaching process is
completed.
|
Description and operation
Description
The SMART KEY system is a system that allows the user to access and operate
a vehicle in a very convenient way. To access the vehicle, no traditional key
or remote co ...
