Hyundai Kona: DCT (Dual Clutch Transmission) System / Special service tools

Special Service Tools
Tool
(Number and Name)
Illustration
Use
09200-3N000
Engine support fixture
(Beam)

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).
※Permit operating with 09200-38001.
※Refer to the engine support fixture assembly drawing below.
09200-2S000
Engine support fixture
(surpporter)

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000).
※Refer to the engine support fixture assembly drawing below.
09430-C1190
Oil seal installer

Used for installing differential oil seal of both side in case of 2WD vehicle[Using with bar (SST No.09231-H1100)]
[2WD]
09431-39000
Oil seal installer

Used for installing differential oil seal [Used with the handle(09500-11000)]
[4WD]
09473-D3500
Oil seal installer

Used for installing driven gear oil seal Used with the handle(09231-H1100)
[4WD]
09231-H1100
Bar

Using with oil seal installer

09500-11000
Bar

Using with oil seal installer
09480-A3800
Inhibitor switch neutral fixed pin

When installing the manual control lever on the inhibitor switch, used to align the neutral position.

09430-C1180
Dual clutch remover

Used for removing dual clutch assembly
09430-2A240
Dual clutch installer

Used for installing dual clutch assembly
09430-C1300
Clutch abrasion compensation tool

Used for adjusting clutch actuator
09430-C1302
Actuator fixing jig & Motor shaft reset tool

Used for adjusting clutch actuator
Used with the Clutch actuator adjuster
09430-A5100
Clutch engagement fork fixing tool

Used for removing clutch actuator assembly

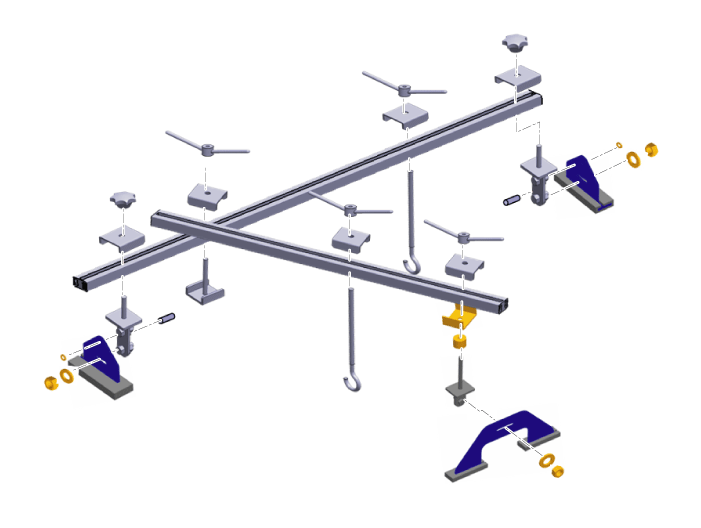

※ Engine support fixture special tool assembly drawing
