Hyundai Kona: Cruise Control operation / To increase Cruise Control speed
.png)

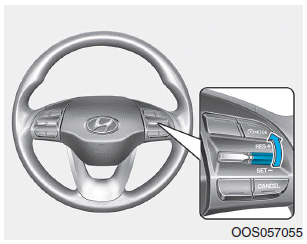

- Push the toggle switch up (RES+) and hold it, while monitoring the SET
speed on the instrument cluster.
Release the toggle switch when the desired speed is shown and the vehicle will accelerate to that speed. - Push the toggle switch up (RES+) and release it immediately. The cruising speed will increase 2.0 km/h (1.2 mph) each time the toggle switch is operated in this manner.
- Depress the accelerator pedal. When the vehicle attains the desired speed, push the toggle switch down (SET-).
To set Cruise Control speed
1. Press the (CRUISE) button on the
steering wheel to turn the system on. The
(CRUISE) indicator will illuminate.
2. Accelerate to the desired speed, which must be more than 30 km/h (20 mph).
Inform ...
To decrease Cruise Control speed
Push the toggle switch down (SET-) and hold it.Your vehicle will gradually
slow down. Release the toggle switch at the speed you want to maintain.
Push the toggle switch down (SET-) and release ...
