Hyundai Kona (OS) 2018-2023 Service Manual / Engine Mechanical System / Intake and Exhaust System / Turbo Charger Components and components location

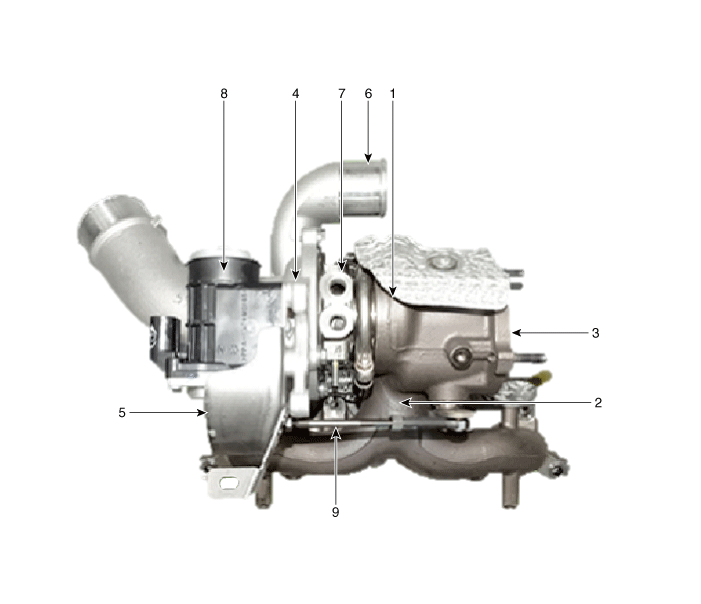

Components

1. Turbine housing
2. Turbine inlet
3. Turbine outlet
4. Compressor housing
5. Compressor inlet

6. Compressor outlet
7. Center housing
8. Electric Waste Gate Actuator (EWGA)
9. Actuator rod

Intercooler Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the engine cover. (Refer to Engine and Transaxle As ...

Turbo Charger Repair procedures

Removal and Installation 1. Remove the turbo charger manifold. (Refer to Intake and Exhaust System - "Turbo Charger & Exhaust Manifold") ...
