Hyundai Kona: Cooling System / Water pump Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Engine Mechanical System / Cooling System / Water pump Components and components location

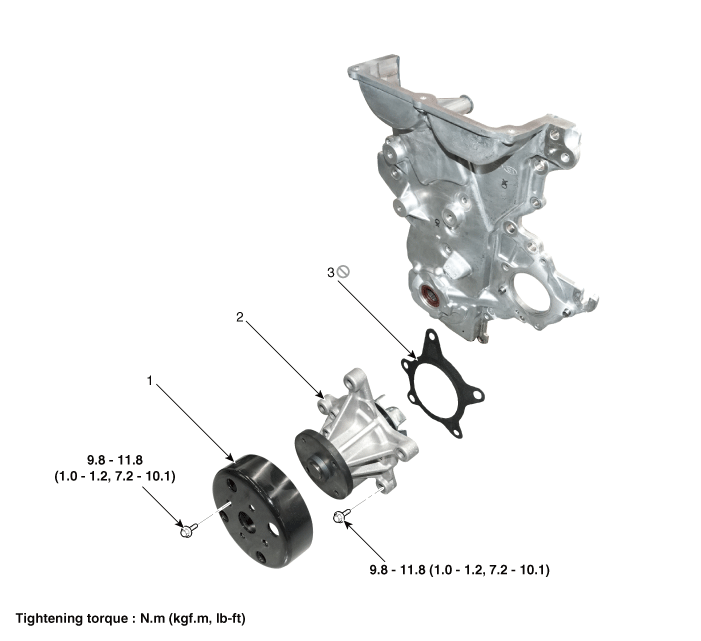

Components

1. Water pump pulley
2. Water pump
3. Water pump Gasket
