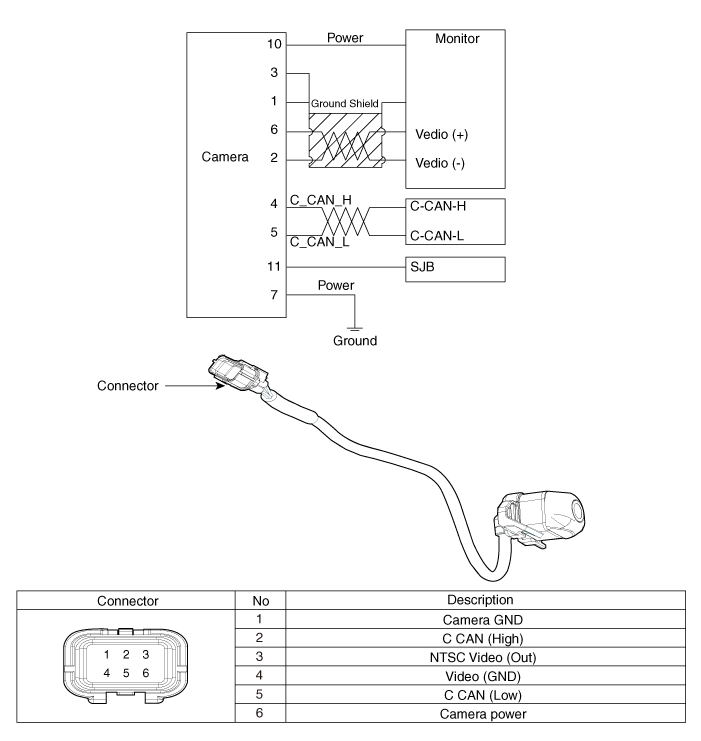

Circuit Diagram

Back View Camera System Components and components location

Component Location 1. Back view camera 2. AVN monitor ...

Back View Camera System Description and operation

Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental ...
