Replacement |
|
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Recover the refrigerant with a recovery / recycling / charging station.
|
3. |
When the engine is cool, drain the engine coolant from the radiator.
(Refer to Engine Mechanical System - "Coolant")
|
4. |
Remove the engine cover.
(Refer to Engine Mechanical System - "Engine Cover")
|
5. |
Remove the bolts and the expansion valve (A) from the evaporator
core.
|
6. |
Disconnect the heater hoses (A) from the heater unit.
|
7. |
Loosen the cowl cross member mounting bolts.
|
8. |
Remove the floor console assembly.
(Refer to Body - "Floor Console Assembly")
|
9. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
10. |
Remove both sides of the front pillar trim.
(Refer to Body - "Front Pillar Trim")
|
11. |
Remove the cowl side trim.
(Refer to Body - "Cowl Side Trim")
|
12. |
Remove the steering column shroud lower panel.
(Refer to Body - "Steering Column Shroud Panel")
|
13. |
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
|
14. |
Remove the multifunction switch.
(Refer to Body Electrical System - "Multifunction Switch")
|
15. |
Lower the steering column after loosening the mounting bolts.
(Refer to Steering System - "Steering Column and Shaft")
|
16. |
Remove the shift lever assembly.
(Refer to Automatic Transmission System - "Shift Lever")
|
17. |
Separate the floor carpet (A) to obtain space for removing the rear
heating duct.
|
18. |
Loosen the mounting nut and remove the rear air duct (A).
|
19. |
Disconnect the airbag control module (SRSCM) connector (A).
|
20. |
Disconnect the junction box connectors (A).
|
21. |
Disconnect the multi box connectors (A).
[Driver's side]
[Passenger's side]
|
22. |
Disconnect the connectors (A) and the mounting clips in the front
pillar.
[Driver's side]
[Passenger's side]
|
23. |
Loosen the blower unit mounting bolts.
|
24. |
Remove the drain hose (A).
|
25. |

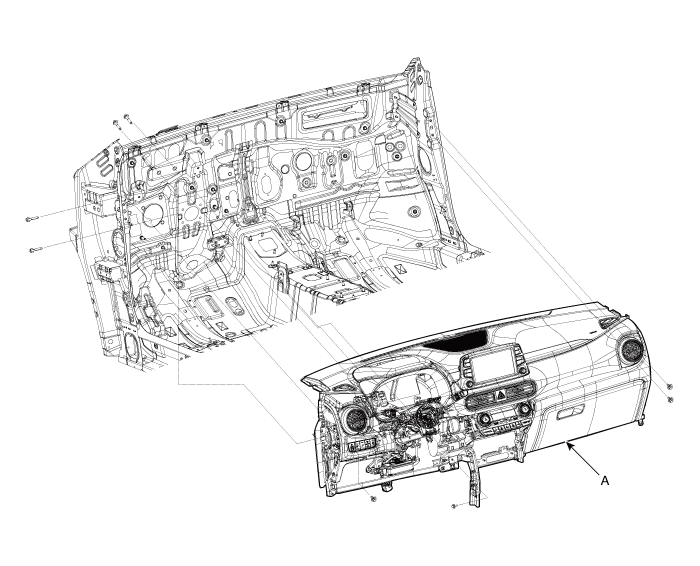

After loosening the bolts and nuts remove the main crash pad and
cowl cross bar assembly (A) together.
|
26. |
Disconnect the heater & blower unit connectors.
[Driver's side]
[Passenger's side]
|
27. |
Loosen the heater & blower unit mounting bolt (A).
|
28. |
Remove the heater and blower unit (A) from the crash pad (B) after
loosening the mounting nuts.
|
29. |
Separate the blower unit (A) from the heater unit (B) after loosening
the screws.
|
30. |
To install, reverse the removal procedure.
|
