Hyundai Kona: ISG (Idle Stop & Go) System / Brake Switch Schematic diagrams

Hyundai Kona (OS) 2018-2024 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Brake Switch Schematic diagrams

Schematic Diagram

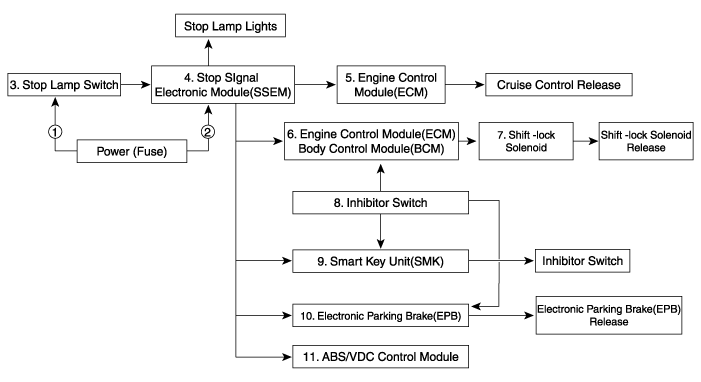

Schematic Circuit Diagram

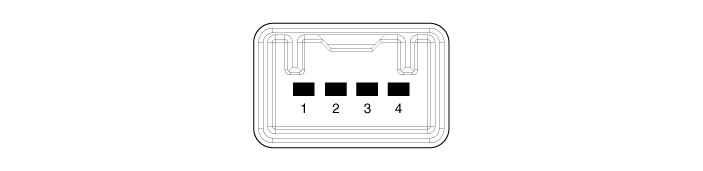

Terminal function

Teminal	Description
1	IGN1
2	Engine Control Module (ECM)
3	B+
4	Stop Lmap

Brake Switch Troubleshooting

Troubleshooting 1. Part diagnosis Items Cause Symptom Swi ...

Brake Switch Repair procedures

Inspection 1. Inspect a removed stop lamp switch along the below procedures. (1) Confirm a normal connection with terminal part ...
