Hyundai Kona: Steering wheel / Components and components location
Hyundai Kona (OS) 2018-2024 Service Manual / Steering System / Steering wheel / Components and components location

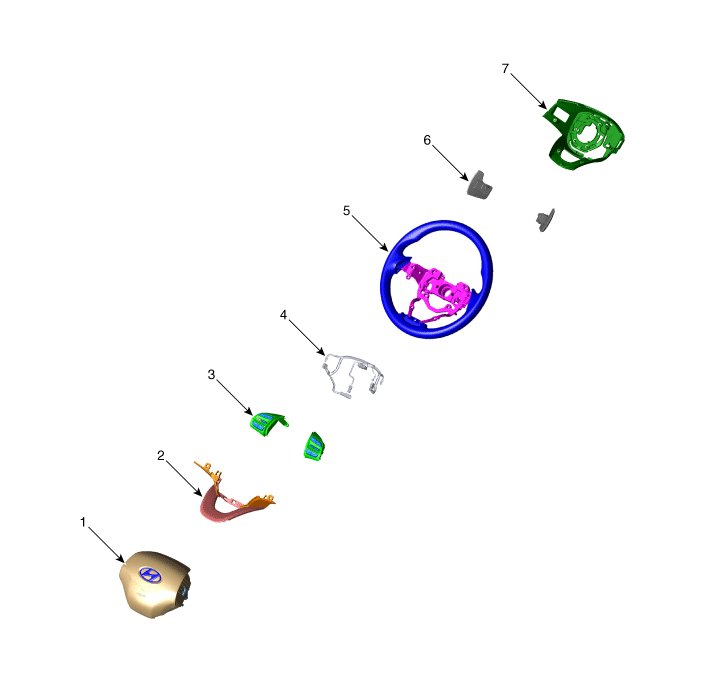

| Components |
| 1. Drive air bag module (DAB) 2. Ornament 3. Remote control switch 4. Wiring |
5. Steering wheel 6. Paddle shift switch 7. Lower cover |
