Hyundai Kona: Rear Door / Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

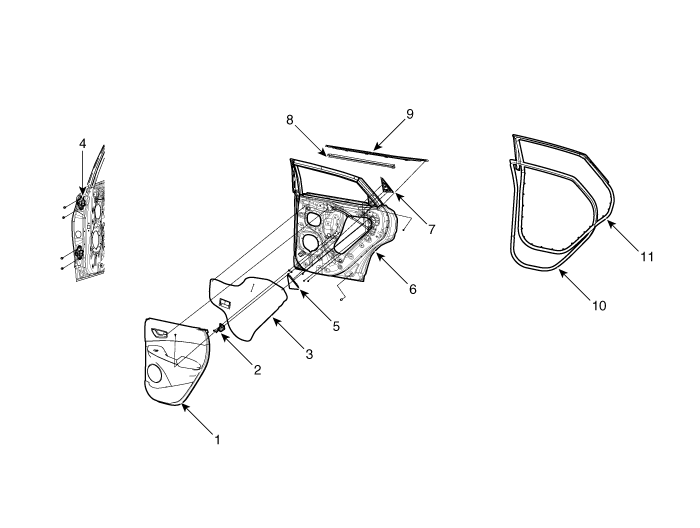

Components

1. Rear door trim
2. Rear door full handle mounting support
3. Rear door trim seal
4. Rear door hinge
5. Rear door quadrant inner cover
6. Rear door panel

7. Rear door delta molding
8. Rear door belt inside weatherstrip
9. Rear door belt outside weatherstrip
10. Rear door body side weatherstrip
11. Rear door side weatherstrip

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deteriora ...
