Hyundai Kona: Windshield Wiper/Washer / Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and components location

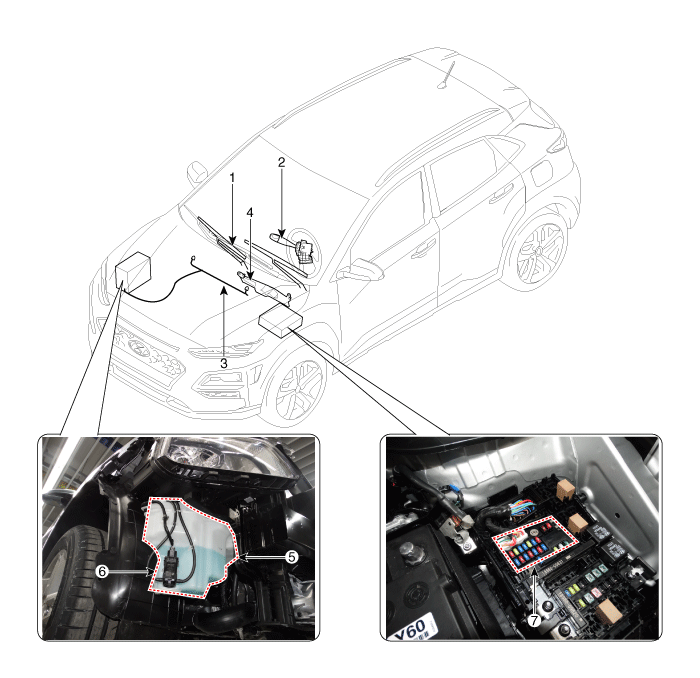

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nozzle
4. Washer motor & linkage assembly

5. Washer motor
6. Washer reservoir
7. Wiper/Washer relay (Built - in PCB block)
