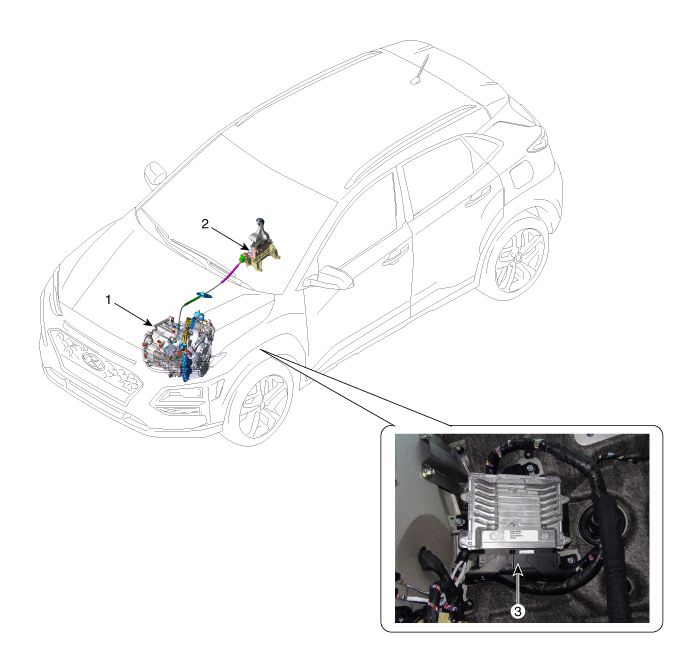

Components

1. Dual clutch transmission assembly
2. Shift lever

3. DCT control module (TCM)

Description and operation

Description The Dual Clutch Transmission (DCT) control system measures required data to identify the state of the control target and computes the appropriate compensation value i ...

DCT Control Module (TCM) Schematic diagrams

1. TCM connetor 2. TCM Terminal Function Connector [A] Pin Discription Pin Discription 1 ...
