Hyundai Kona: Dual Clutch Transmission Control System / DCT Control Module (TCM) Schematic diagrams

Hyundai Kona (OS) 2018-2024 Service Manual / DCT (Dual Clutch Transmission) System / Dual Clutch Transmission Control System / DCT Control Module (TCM) Schematic diagrams

1. TCM connetor

2. TCM Terminal Function
Connector [A]
Pin
Discription
Pin
Discription
1
 Clutch Actuator (Clutch motor 1 (ODD)_Phase V)
 17
 -
2
 Clutch Actuator (Clutch motor 2 (EVEN)_Phase V)
 18
 Clutch Actuator (Clutch motor 1 (ODD)_Hall 1)
3
 Select Actuator (Select Solenoid 2 (EVEN)_Ground)
 19
 Clutch Actuator (Clutch 1(ODD)_Sensor Supply)
4
 Select Actuator (Select Solenoid 1(ODD)_Push)
 20
 Select Actuator (Select Solenoid 1 (ODD)_Sensor Supply)
5
 Clutch Actuator (Clutch motor 1 (ODD)_Phase U)
 21
 Select Actuator (Selcet Solenoid 2 (EVEN)_Sensor Supply)
6
 Clutch Actuator (Clutch motor 2 (EVEN)_Phase U)
 22
 Selcet Actuator (Select Solenoid 2 (EVEN)_Sensor Output)
7
 Select Actuator (Selec Solenoid 1 (ODD)_Ground)
 23
 Clutch Actuator (Clutch motor 2 (EVEN)_Hall 2)
8
 Select Actuator (Select Solenoid 2(EVEN)_Pull)
 24
 Clutch Actuator (Clutch motor 2 (EVEN)_Hall 3)
9
 Clutch Actuator (Clutch motor 1 (ODD)_Phase W)
 25
 Clutch Actuator (Clutch motro2 (EVEN)_Ground)
10
 Clutch Actuator (Clutch motor 2 (EVEN)_Phase W)
 26
 Select Actuator (Select Solenoid 1 (ODD)_Sensor Output)
11
 Select Actuator (Selec Solenoid 1 (ODD)_Pull)
 27
 -
12
 Select Actuator (Select Solenoid 2 (EVEN)_Push)
 28
 Clutch Actuator (Clutch motor 2 (EVEN)_Hall 1)
13
 Clutch Actuator (Clutch motor 1(ODD)_Hall 2)
 29
 Clutch Actuator (Clutch motor 2 (EVEN)_Sensor Supply)
14
 Clutch Actuator (Clutch motor 1(ODD)_Hall 3)
 30
 Select Actuator (Select Solenoid 1 (ODD)_Sensor Ground)
15
 Clutch Actuator (Clutch motor 1 (ODD)_Sensor Ground)
 31
 Select Actuator (Select Solenoid 2 (EVEN)_Sensor Ground)
16
 -
 32
 -

Connector [B]
Pin
Discription
Pin
Discription
1
 -
 35
 -
2
 -
 36
 -
3
 ON / START Input
37
 -
4
 Paddle Shift (Up) Switch Input Signal
 38
 -
5
 Inhibitor Switch "P" Input Signal
 39
 -
6
 Inhibitor Switch "R" Input Sigal
 40
 -
7
 Inhibitor Switch "D" Input Signal
 41
 Shift Actuator (Shift Motor 2 (EVEN) _HALL 2)
8
 Sports mode "Down" Shift
 42
 Shift Actuator (Shift Motor 2 (EVEN) _HALL 3)
9
 Input Speed Sensor Signal 2 (EVEN)
 43
 Inhibitor Switch "M" Input Signal
10
 -
 44
 CAN 1 Communication Port 1 High
11
 -
 45
 CAN 1 Communication Port 1 Low
12
 -
 46
 -
13
 Shift Actuator (Shift motor 1 (ODD)_Hall 2)
 47
 -
14
 Shift Actuator (Shift motor 1 (ODD)_Hall 3)
 48
 Flex ray High (BP)
15
 -
 49
 Input Speed Supply 1 (ODD)
16
 -
 50
 Input Speed Signal 1 (ODD)
17
 Battery Power (Low)
 51
 -
18
 Paddle Shift (Down) Input Signal
 52
 -
19
 Shift Lever Select Switch
 53
 -
20
 Inhibitor Switch "N" input Signal
 54
 Shift Actuator (Shift Motor 2 (EVEN) _Sensor Supply )
21
 Sports mode "Up" Shift
 55
 Shift Actuator (Shift Motor 2 (EVEN) _HALL 1)
22
 -
 56
 Shift Actuator (Shift Motor 2 (EVEN) _Sensor Ground)
23
 Input Speed Supply 2 (EVEN)
 57
 Power Ground 1 for High Current Modules
24
 5V spare supply output
 58
 Power Ground 2 for High Current Modules
25
 -
 59
 Shift Actuator (Shift Motor 2 (EVEN)_Phase W)
26
 Shift Actuator (Shift Motor 1 (ODD)_Sensor Supply)
 60
 Shift Actuator (Shift Motor 1 (ODD)_Phase W)
27
 Shift Actuator (Shift Motor 1 (ODD)_HALL 1)
 61
  Power Ground 3 for High Current Modules
28
 Shift Actuator (Shift Motor 1 (ODD)_Sensor Ground)
 62
 -
29
 -
 63
 Shift Actuator (Shift Motor 2 (EVEN)_Phase V)
30
 CAN 2 Communication Port 2 High
 64
 Shift Actuator (Shift Motor 1 (ODD)_Phase V)
31
 CAN 2 Communication Port 2 Low
 65
 Motor Supply Voltage 1 from Direct Battery
32
 -
 66
 Motor Supply Voltage 2 from Direct Battery
33
 -
 67
 Shift Actuator (Shift Motor 2 (EVEN)_Phase U)
34
 Flex ray Low (BM)
 68
 Shift Actuator (Shift Motor 1 (ODD)_Phase U)

3. Terminal input/output signal
Connector [A]
Pin
Discription
Condition
Input / output value
Type
Level
1
 Clutch Actuator (Clutch Motor 1 (ODD)_Phase V)
 Low
 Output
 0V
PWM
 0V - Battery voltage
2
 Clutch Actuator (Clutch Motor 2 (EVEN) Phase V)
 Low
 Output
 0V
PWM
 0V - Battery voltage
3
 Select Actuator (Select Solenoid 2 (EVEN)_Ground)
 ON
 Output
 0V
4
 Select Actuator (Select Solenoid 1 (ODD) Push)
 ON
 Output
 Battery voltage
OFF
 0V
5
 Clutch Actuator (Clutch Motor 1 (ODD)_Phase U)
 Low
 Output
 0V
PWM
 0V - Battery voltage
6
 Clutch Actuator (Clutch Motor 2 (EVEN)_Phase U)
 Low
 Output
 0V
PWM
 0V - Battery voltage
7
 Select Actuator (Select Solenoid 1 (ODD) Ground)
 ON
 Output
 0V
8
 Select Actuator (Select Solenoid 2 (EVEN)_ Pull)
 ON
 Output
 Battery voltage
OFF
 0V
9
 Clutch Actuator (Clutch Motor1 (ODD)_Phase W)
 Low
 Output
 0V
PWM
 0V - Battery voltage
10
 Clutch Actuator (Clutch Motor 2 (EVEN)_Phase W)
 Low
 Output
 0V
PWM
 0V - Battery voltage
11
 Select Actuator (Select Solenoid 1 (ODD) Pull)
 ON
 Output
 Battery voltage
OFF
 0V
12
 Select Actuator (Select Solenoid 2 (EVEN) Push)
 ON
 Output
 Battery voltage
OFF
 0V
13
 Clutch Actuator (Clutch Motor 1 (ODD)_HALL 2)
 High
 Input
 4.5V
Low
 0V
14
 Clutch Actuator (Clutch Motor 1 (ODD)_HALL 3)
 High
 Input
 4.5V
Low
 0V
15
 Clutch Actuator (Clutch Motor 1 (ODD)_Ground)
 Ground
 Ground
 0V
16
 -


17
 -


18
 Clutch Actuator (Clutch Motor 1 (ODD)_HALL 1)
 HIgh
 Input
 4.5V
Low
 0V
19
 Clutch Actuator (Clutch Motor 1 (ODD)_Sensor Supply)
 -
 Power
 8.75V
20
 Select Actuator (Select Solenoid 1 (ODD)_Sensor Supply)
 -
 Power
 8.75V
21
 Select Actuator (Select Solenoid 2 (EVEN)_Sensor Supply)
 -
 Power
 8.75V
22
 Select Actuator (Select Solenoid 2 (EVEN)_Sensor Ouput)
 High
 Input
 4V
Low
 1V
23
 Clutch Actuator (Clutch Motor 2 (EVEN)_HALL 2)
 High
 Input
 4.5V
Low
0V
24
 Clutch Actuator (Clutch Motor 2 (EVEN)_HALL 3)
 High
 Input
 4.5V
Low
0V
25
 Clutch Actuator (Clutch Motor 2 (EVEN)_Sensor Ground)
 Ground
 Ground
 0V
26
 Select Actuator (Select Solenoid 1 (ODD)_Sensor Output)
 High
 Input
 4V

1V
27
 -


28
 Clutch Actuator (Clutch Motor 2 (EVEN)_HALL 1)
 High
 Input
 4.5V
Low
 0V
29
 Clutch Actuator (Clutch Motor 2 (EVEN)_Supply)
Power
 8.75V
30
 Select Actuator (Select Solenoid 1 (ODD)_Sensor Ground)
 Ground
 Ground
 0V
31
 Select Actuator (Select Solenoid 2 (EVEN)_Sensor Ground)
 Ground
 Ground
 0V
32
 -



Connector [B]
Pin
Discription
Condition
Input / output value
Type
Level
1



2



3
 ON / START Input
 -
 Power
 9V < Battery voltage < 16V
4
 Paddle Shift (Up) Switch Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
5
 Inhibitor Switch "P" Input Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
6
 Inhibitor Switch "R" Input Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
7
 Inhibitor Switch "D" Input Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
8
 Sports mode "Down" shift
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
9
 Input Speed Sensor Signal 2 (EVEN)
 High
 Input
 0.448V
Low
 0.224V
10



11



13
 Shift Actuator (Shift Motor 1 (ODD) _HALL 2)
 High
 Input
 4.5V
Low
 0V
14
 Shift Actuator (Shift Motor 1 (ODD) _HALL 3)
 High
 Input
 4.5V
Low
 0V
15
 -


16
 -


17
 Battery Power Low VBD

Power
 9V < Battery voltage < 16V
18
 Paddle Shift (Down) Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
19
 Shift Lever Select Switch
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
20
 Inhibitor Switch "N" Input Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
21
 Sports mode "Up" shift
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
22
 -


23
 Input Speed Supply 2 (EVEN)
Power
 8.75V
24
 5V spare supply output
Power
 5V
25
 -


26
 Shift Actuator (Shift Motor 1 (ODD)_Sensor Supply)
Power
 8.75V
27
 Shift Actuator (Shift Motor 1 (ODD)_HALL 1)
 High
 Input
 4.5V
Low
 0V
28
 Shift Actuator (Shift Motor 1 (ODD)_Sensor Ground)
 Ground
 Ground
 0V
29
 -


30
 CAN2 Communication Port2 High
 Rec./Dom
 CAN Line
 Recessive : 2.5V
Dominant : 3.5V
31
 CAN2 Communication Port2 Low
 Rec./Dom
 CAN Line
 Recessive : 2.5V
Dominant : 1.5V
32
 -


33
 -


34
 Flex ray Low (BM)
 Idle
 CAN Line
 Idle : 2.5V
Differential
 Differential : 2.0 V / 3.0 V
35
 -


36
 -


37
 -


38
 -


39
 -


40
 -


41
 Shift Actuator (Shift Motor 2 (EVEN) _HALL 2)
 High
 Input
 4.5V
Low
 0V
42
 Shift Actuator (Shift Motor 2 (EVEN) _HALL 3)
 High
 Input
 4.5V
Low
 0
43
 Inhibitor Switch "M" Input Signal
 High
 Input
 9V < Battery voltage < 16V
Low
 0V
44
 CAN1 Communication Port1 High
 Idle
 CAN Line
Differential
45
 CAN1 Communication Port1 Low
 Rec./Dom
 Rec./Dom
 Recessive : 2.5V
Dominant : 3.5V
46
 -


47
 -


48
 Flex ray High (BP)
 Rec./Dom
 CAN Line
 Idle : 2.5V
Differential : 2.0 V / 3.0 V
49
 Input Speed Supply 1 (ODD)
 -
 Power
 8.75V

50
 Input Speed Signal 1 (ODD)
 High
 Input
 0.448V
Low
 0.224V
51
 -


52
 -


53
 -


54
 Shift Actuator (Shift Motor 2 (EVEN) _Sensor Supply)
 -
 Power
 8.75V
55
 Shift Actuator (Shift Motor 2 (EVEN) _HALL 1)
 High
 Input
 4.5V
Low
 0.8V
56
 Shift Actuator (Shift Motor 2 (EVEN) _Sensor Ground)
 Ground
 Ground
 0V
57
 Power Ground 1 for High Current Modules
 Ground
 Ground
 Ground
58
 Power Ground 2 for High Current Modules
 Ground
 Ground
 Ground
59
 Shift Actuator (Shift Motor 2 (EVEN)_Phase W)
 Low
 Out put
PWM
60
 Shift Actuator (Shift Motor 1 (ODD)_Phase W)
 Low
 Out put
 0V
PWM
 0V - Battery voltage
61
 Power Ground 3 for High Current Modules
 Ground
 Ground
 Ground
62
 -


63
 Shift Actuator (Shift Motor 2 (EVEN)_Phase V)
 Low
 Out put
 0V
PWM
 0V - Battery voltage
64
 Shift Actuator (Shift Motor 1 (ODD)_Phase V)
 Low
 Out put
 0V
PWM
 0V - Battery voltage
65
 Motor Supply Voltage 1 from Direct Battery
Power
 9V < Battery voltage < 16V
66
 Motor Supply Voltage 2 from Direct Battery
Power
 9V < Battery voltage < 16V
67
 Shift Actuator (Shift Motor 2 (EVEN)_Phase U)
 Low
 Out put
 0V
PWM
 0V - Battery voltage
68
 Shift Actuator (Shift Motor 1 (ODD)_Phase U)
 Low
 Out put
 0V
PWM
 0V - Battery voltage

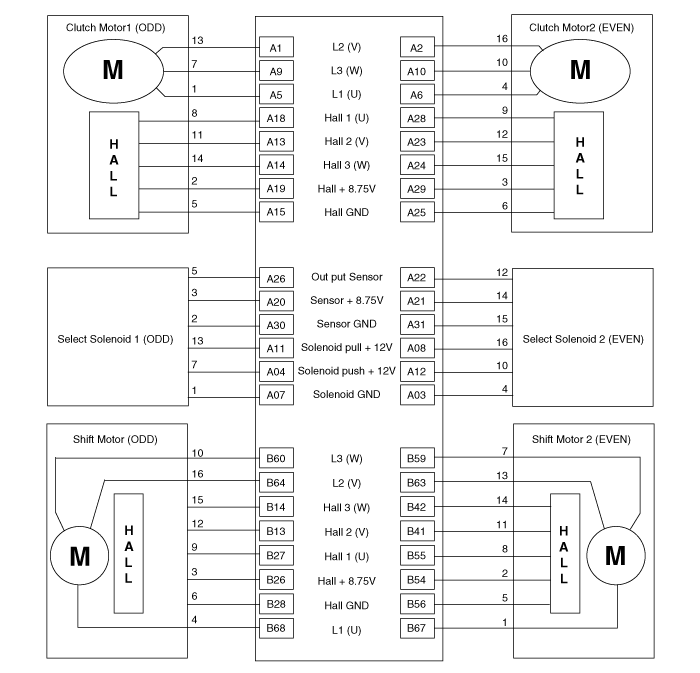

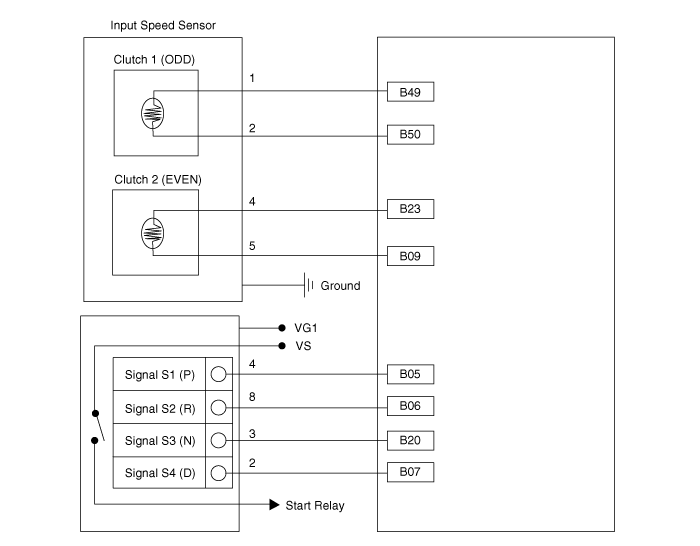

Circuit Diagram

Components and components location
Components 1. Dual clutch transmission assembly 2. Shift lever 3. DCT control module (TCM) ...

DCT Control Module (TCM) Repair procedures
Inspection Transmission Control Module (TCM) Inspection Procedure 1. Inspecting TCM ground circuit: Measure the resistance between the TCM and c ...

Other information:

Hyundai Kona (OS) 2018-2024 Owners Manual: Washer fluid
Checking the washer fluid level Check the fluid level in the washer fluid reservoir and add fluid if necessary. Plain water may be used if washer fluid is not available. However, use washer solvent with antifreeze characteristics in cold climates to prevent freezing. WARNING To prevent serious in ...

Hyundai Kona (OS) 2018-2024 Owners Manual: Child-protector rear door locks
The child safety lock is provided to help prevent children seated in the rear from accidentally opening the rear doors. The rear door safety locks should be used whenever children are in the vehicle. The child safety lock is located on the edge of each rear door. When the child safety lock is in ...

© 2018-2024 www.hkona.com
