Hyundai Kona: Cooling System / Cooling Fan Schematic diagrams

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Schematic diagrams

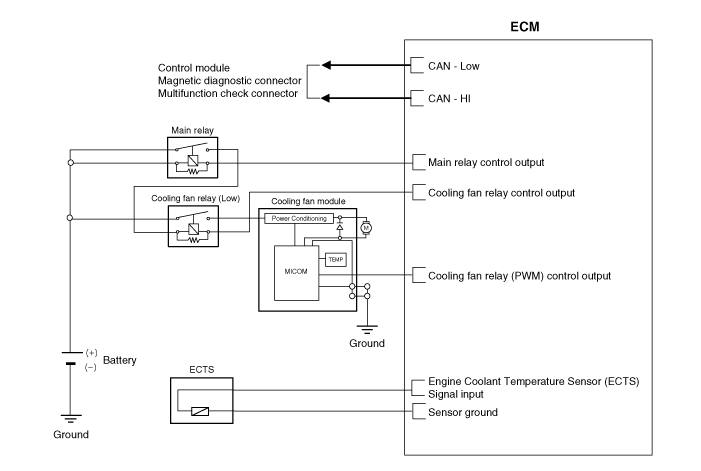

Circuit Diagram

Cooling Fan Specifications

Specification Items Performance spec MAX, load current consumption (12 V) 23.3 + 10% Input Communica ...

Cooling Fan Repair procedures

Removal and Installation Cooling Fan Assembly 1. Disconnect the battery negative terminal from the battery. 2. Remove the air duct and ...
