Hyundai Kona: Cylinder Block / Crankshaft Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Mechanical System / Cylinder Block / Crankshaft Components and components location

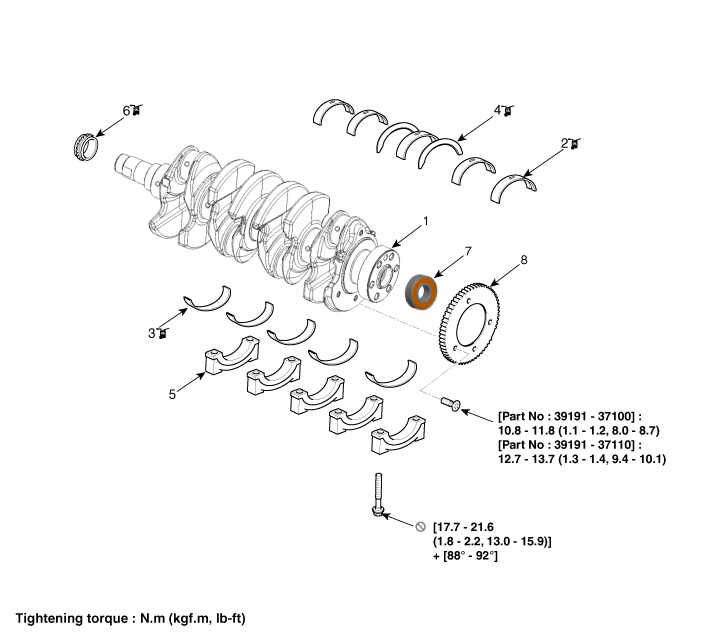

Components

1. Crankshaft
2. Crankshaft upper bearing
3. Crankshaft lower bearing
4. Thrust bearing
5. Main bearing cap
6. Crankshaft sproket
7. Pilot bearing
8. CKPS wheel

Piston and Connecting Rod Repair procedures
Disassembly    • Use fender covers to avoid damaging painted surfaces. ...

Crankshaft Repair procedures
Disassembly    • Use fender covers to avoid damaging painted surfaces. ...
