Hyundai Kona: Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting

Waveform

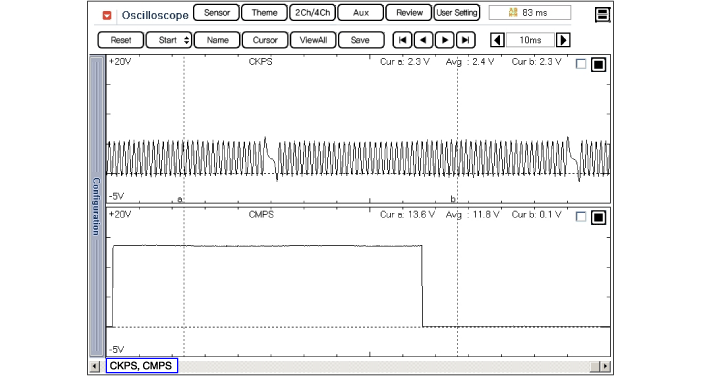

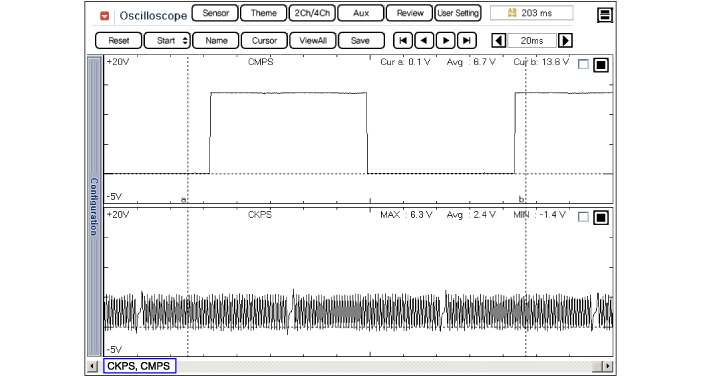

This example shows a typical Crankshaft Position Sensor(CKPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the injection and ignition timing by using these signals.
Generally CKPS signal is used to detect the piston's position and CMPS signal is used to detect the Top Dead Center of each cylinder.
Crankshaft Position Sensor (CKPS) Description and operation
Description Crankshaft Position Sensor (CKPS) detects the crankshaft position and is one of the most important sensors of the engine control system. If there is no CKPS signal in ...

Crankshaft Position Sensor (CKPS) Schematic diagrams
Circuit Diagram Harness Connector ...
