Hyundai Kona: Cruise Control System / Cruise Control Switch Schematic diagrams
Hyundai Kona (OS) 2018-2026 Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Schematic diagrams

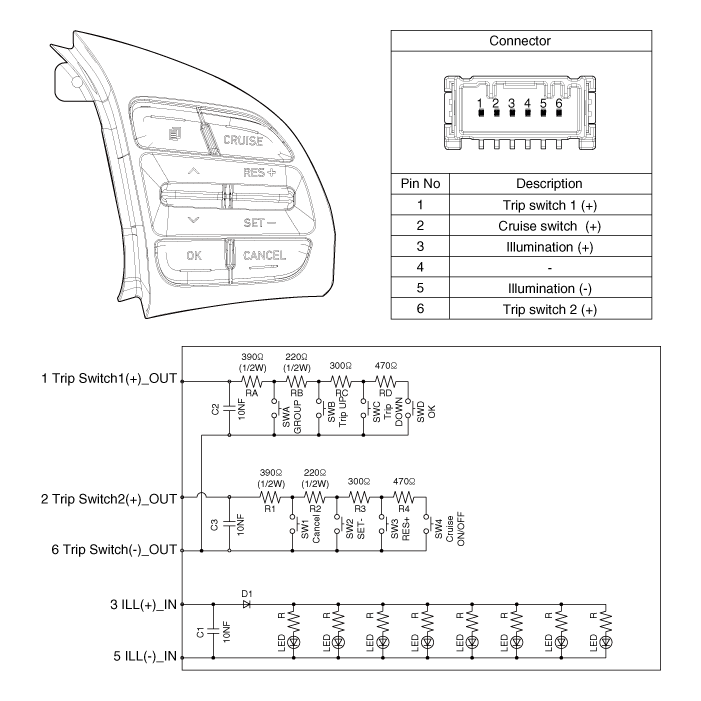

| Circuit Diagram |
| [Trip + Cruise] |
Cruise Control Switch Components and components location
Components
1. Left Remote Control Switch
(Audio + Hands free)
2. Right Remote Control Switch
(Cruise + Trip Computer)
...
Cruise Control Switch Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel assembly.
(Refer to Steering System - "S ...
