Hyundai Kona: Charging System / DC/DC Converter Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Electrical System / Charging System / DC/DC Converter Components and components location

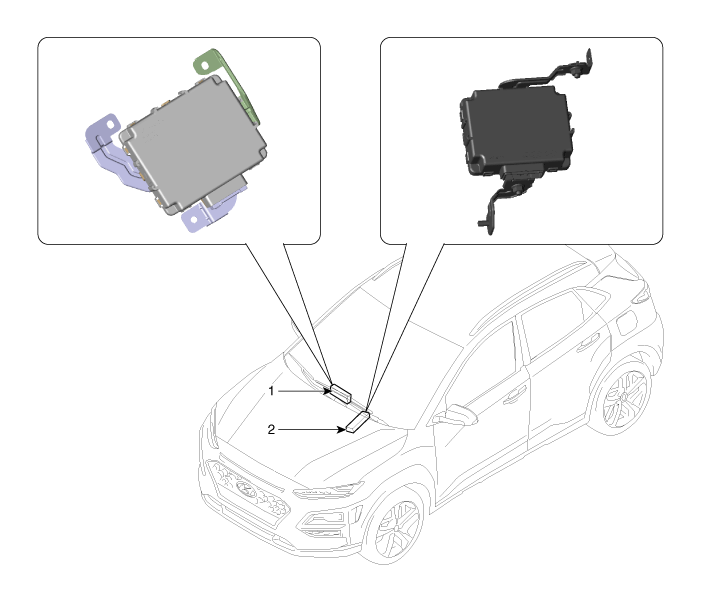

Component Location

1. DC/DC converter [450W]
2. DC/DC converter [200W]

DC/DC Converter Description and operation
Description Due to the considerably more frequent occurrence of starting operations, the electrical load that occurs often leads to voltage dips in the vehicle network. In order ...

DC/DC Converter Schematic diagrams
Circuit Diagram [200W] [450W] ...
