Hyundai Kona: Engine Control System / Electric WGT Control Actuator Schematic diagrams

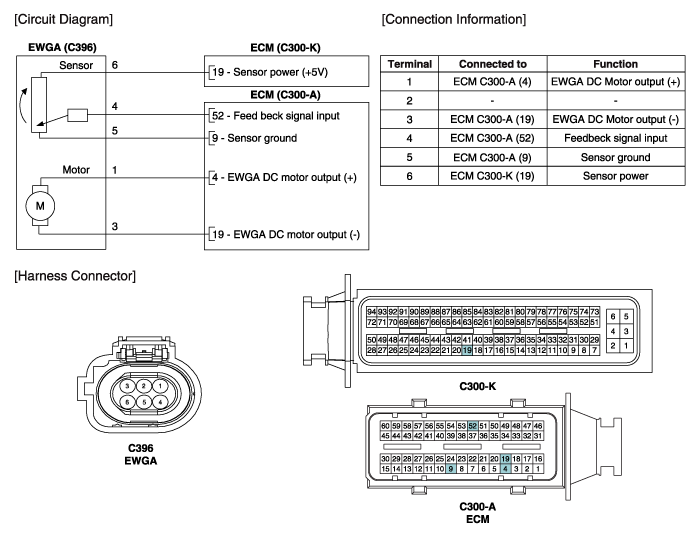

Circuit Diagram
