Component Location

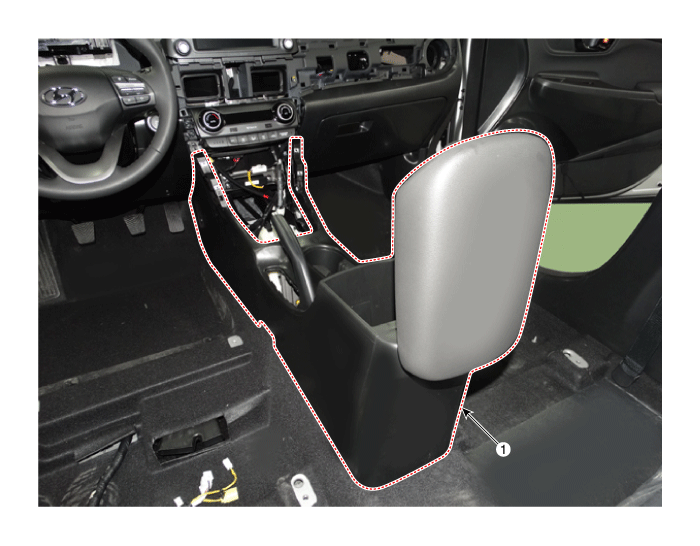

[Manual console]

1. Floor console assembly

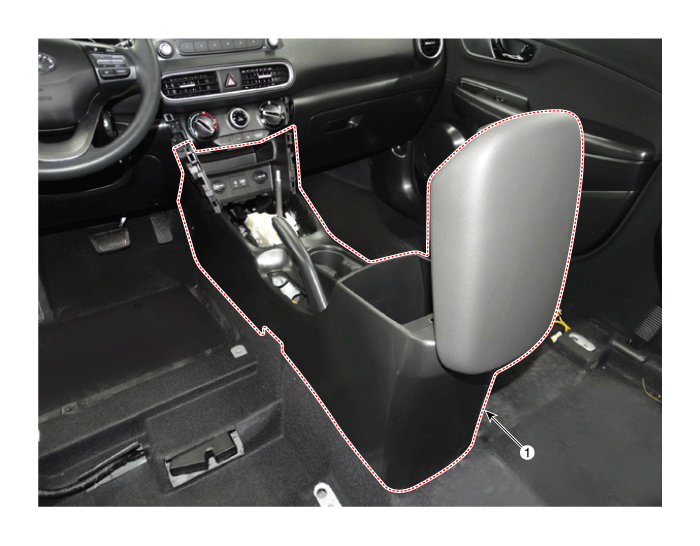

[Automatic console]

1. Floor console assembly


Components and components location
Components 1. Floor console rear mounting bracket 2. Floor console center mounting bracket 3. Floor console assembly 4. Console storage box mat 5. Parking ...

Floor Console Assembly Repair procedures
Replacement [Manual console]    • Put on gloves to prevent hand injuries. ...
