Hyundai Kona: Headlamp and front fog lamp aiming (for Europe) / Front fog lamp

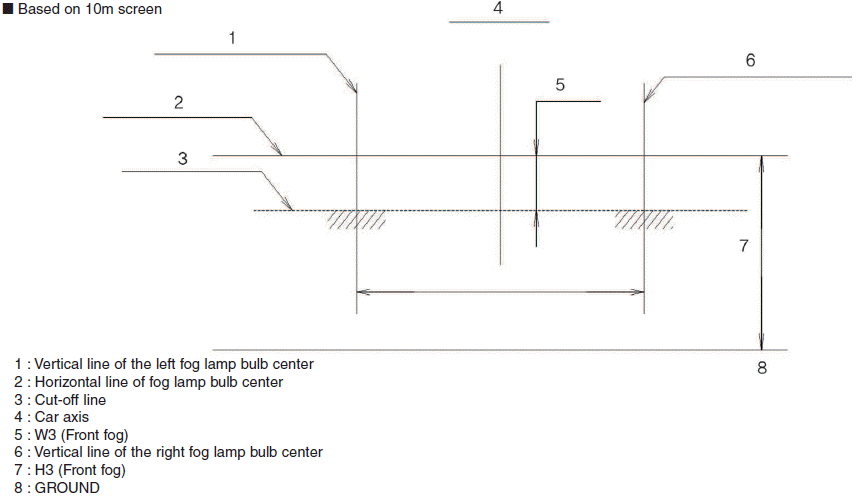

1. Turn the front fog lamp on without the driver aboard.

2. The cut-off line should be projected in the allowable range (shaded region).

Headlamp low beam (RHD side)
1. Turn the low beam on without driver aboard. 2. The cut-off line should be projected in the cut-off line shown in the picture. 3. When aiming the low beam, vertical aiming should be adjusted after ...

Side repeater lamp replacement
If the light bulb does not operate, we recommend that you have the vehicle checked by an authorized HYUNDAI dealer. ...
