Hyundai Kona: Timing System / Front Oil Seal Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal Components and components location

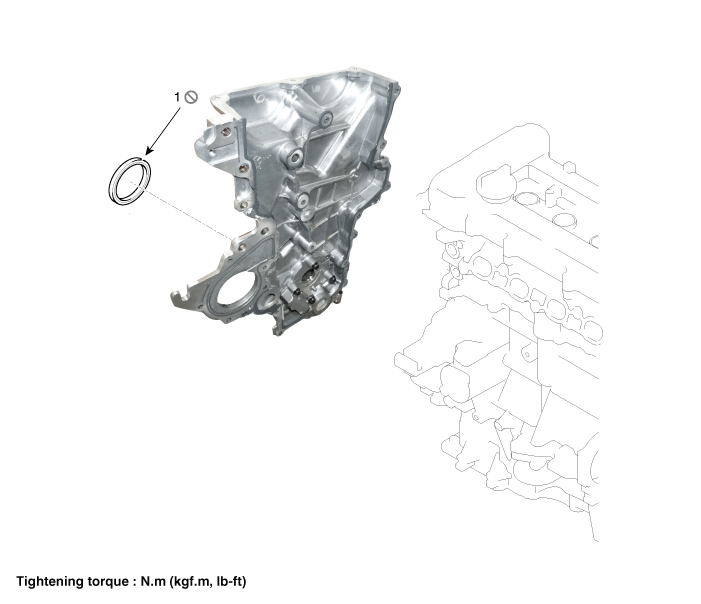

Components

1. Front oil seal
