Hyundai Kona: ESP (Electronic Stability Program) System / Front Wheel Speed Sensor Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Brake System / ESP (Electronic Stability Program) System / Front Wheel Speed Sensor Components and components location

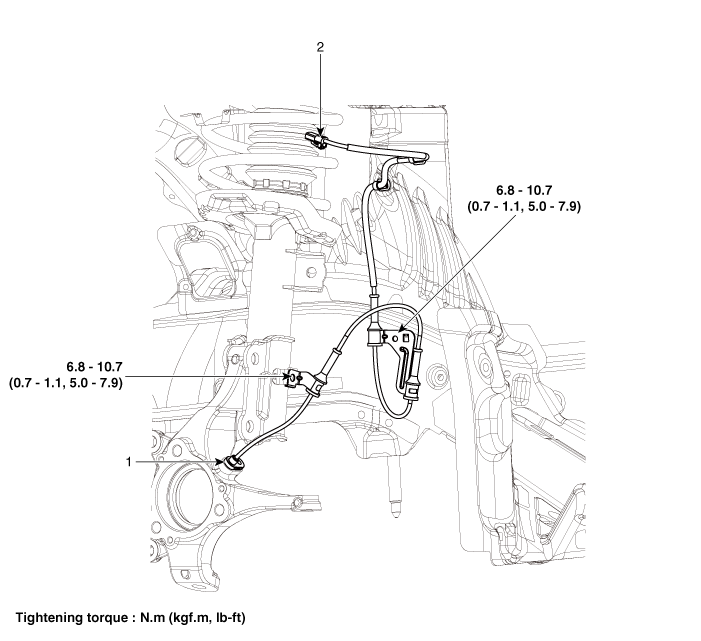

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector
