Hyundai Kona: Fuel Delivery System / Fuel Pump Control Module (FPCM) Schematic diagrams

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pump Control Module (FPCM) Schematic diagrams

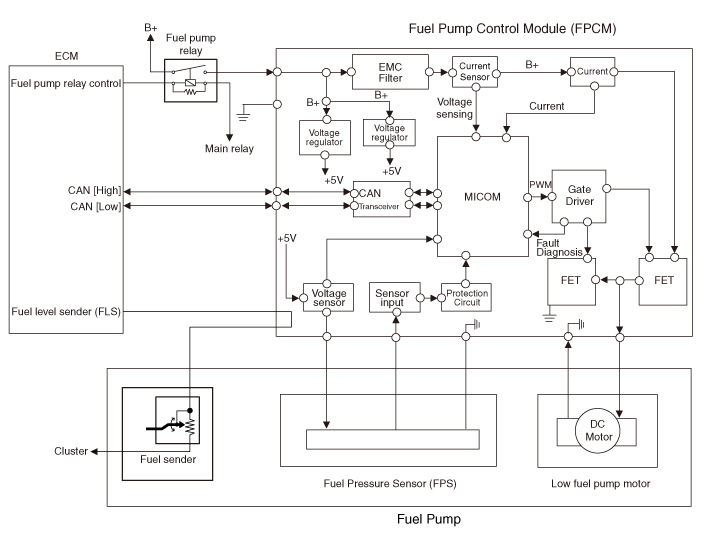

Circuit Diagram

Terminal Illustration

Terminal Function
Pin No
Description
Connected to
1
Fuel sender ground (-)
Fuel Pump
2
Fuel pressure sensor signal input
Fuel pressure sensor (FPS)
3
Fuel pressure sensor ground (-)
Fuel pressure sensor (FPS)
4
Ground (-)
Chassis Ground
5
CAN [Low]
ECM
6
Fuel sender signal (+)
Fuel Pump
7
-

8
Fuel pressure sensor power supply (+5V)
Fuel pressure sensor (FPS)
9
CAN [High]
ECM
10
Battery power (B+)
Fuel Pump Relay
