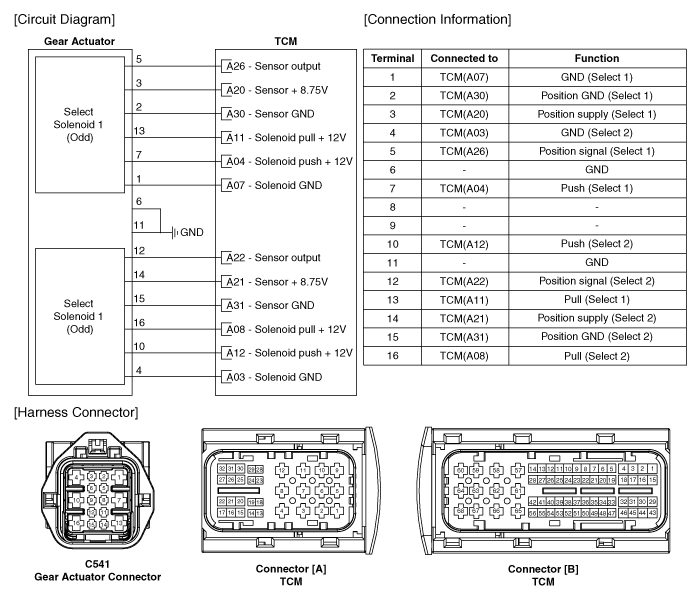

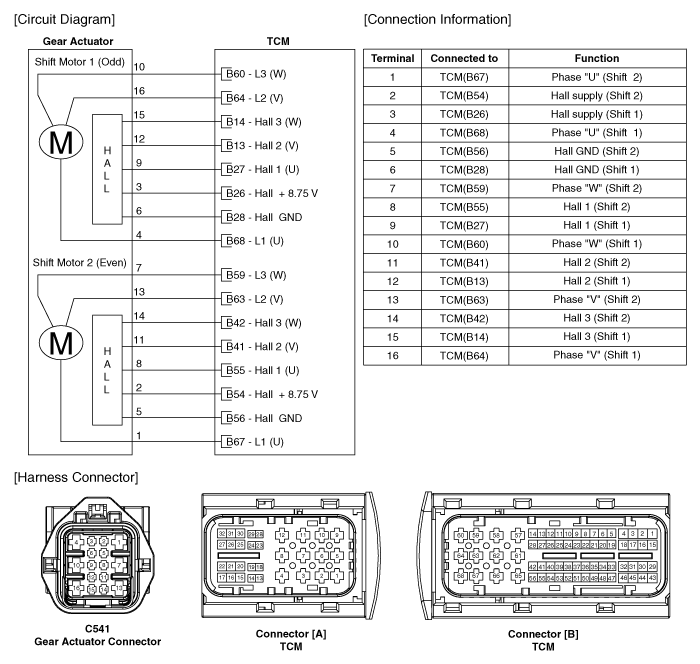

Circuit Diagram

Gear Actuator Assembly Description and operation

Description • Components location : DCT (Dual Clutch Transmission) • Function The gear actuator comprises the shift ...

Gear Actuator Assembly Repair procedures

Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") 2. Remove th ...
