Hyundai Kona: Intake and Exhaust System / Muffler Components and components location
Hyundai Kona (OS) 2018-2026 Service Manual / Engine Mechanical System / Intake and Exhaust System / Muffler Components and components location

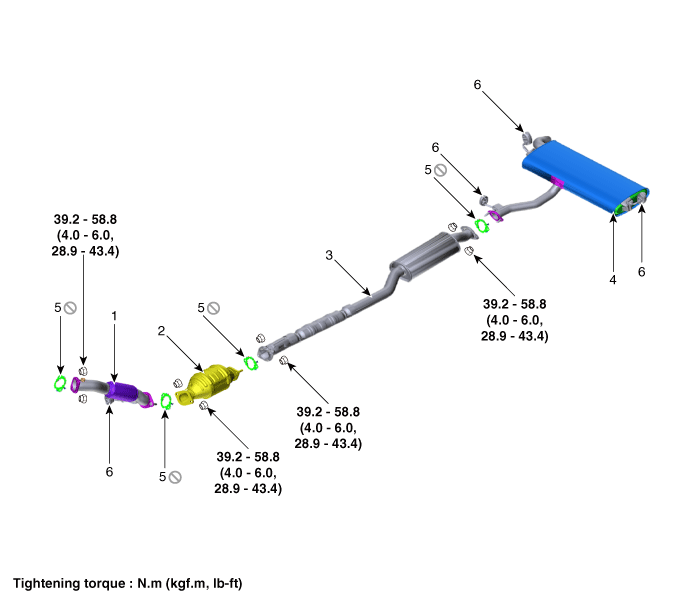

| Components |
| 1. Front
muffler 2. GPF 3. Center muffler |
4. Rear
muffler 5. Gasket 6. Hanger |
Turbo Charger Repair procedures
Removal and Installation
1.
Remove the turbo charger manifold.
(Refer to Intake and Exhaust System - "Turbo Charger & Exhaust Manifold")
...
Muffler Repair procedures
Removal and Installation
Front Muffler
1.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Enginer Cover")
