Hyundai Kona: Power Door Locks / Power Door Lock Module Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Module Components and components location

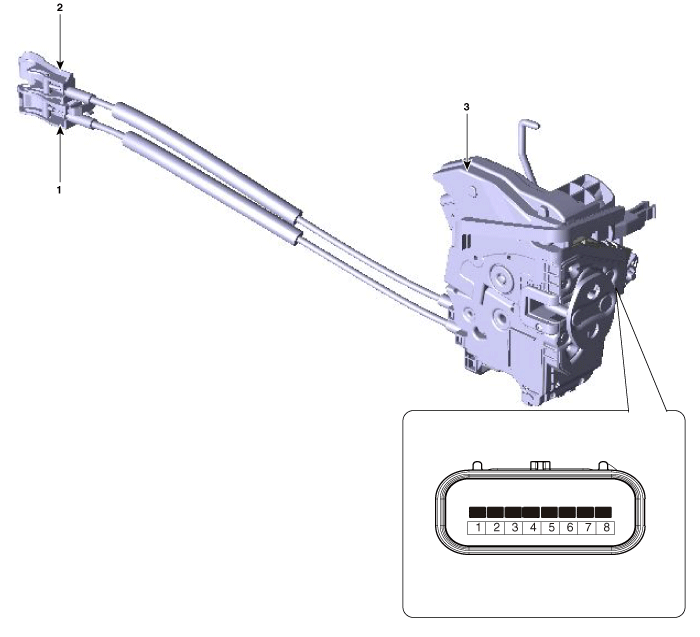

Conponents

1. Door inside handle cable
2. Door lock/unlock knob cable
3. Door Latch Assembly

Components and components location
Component Location 1. DDM (Driver Door Module) 2. ADM (Assist Door Module) 3. SJB (Smart Junction Block) 4. Door lock knob 5. Trunk lid actuator ...

Power Door Lock Module Repair procedures
Inspection    • Wrap the protective tape on the tool to disassembl ...
