Hyundai Kona: Seat Electrical / Power Seat Motor Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Seat Electrical / Power Seat Motor Components and components location

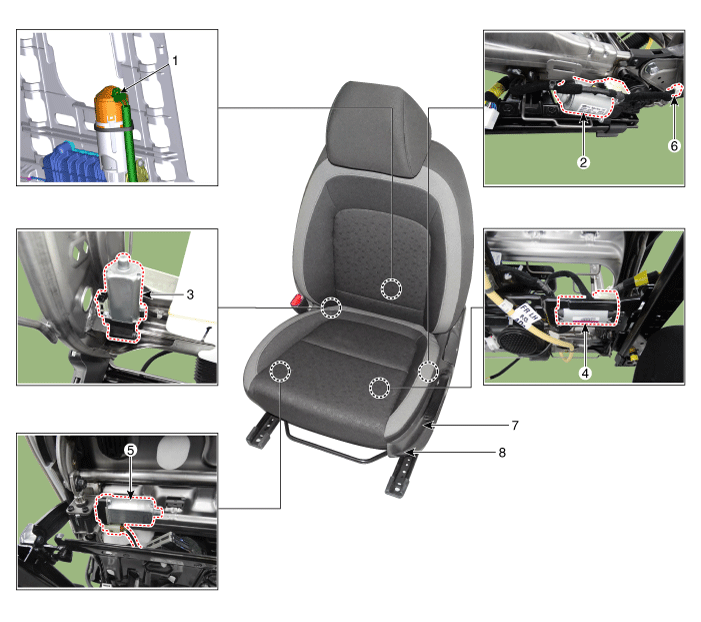

Component Location

1. Lumber support motor (Horizontal)
2. Rear height motor
3. Reclining motor
4. Slide motor
5. Front height motor
6. Reclining limit switch
7. Lumber support switch
8. Seat switch
