Hyundai Kona: Power Windows / Power Window Switch Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Body Electrical System / Power Windows / Power Window Switch Components and components location

Components

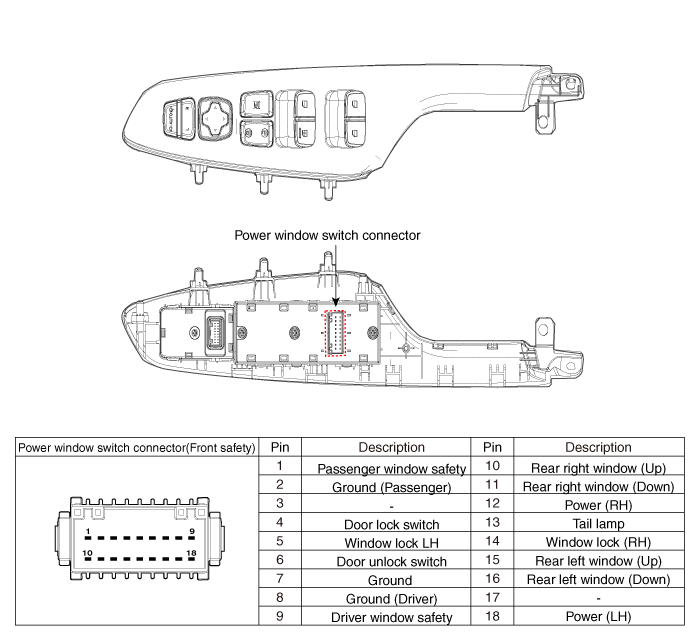

Driver Safety Power Window Switch

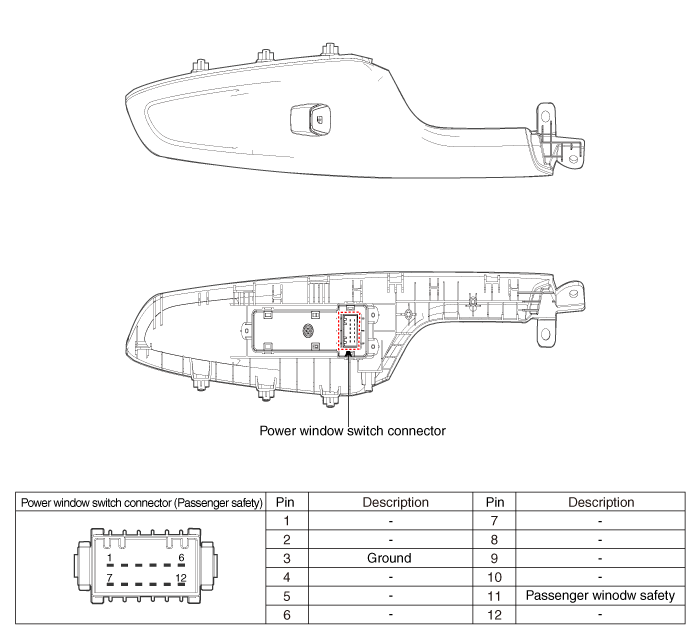

Passenger Safety Power Window Switch

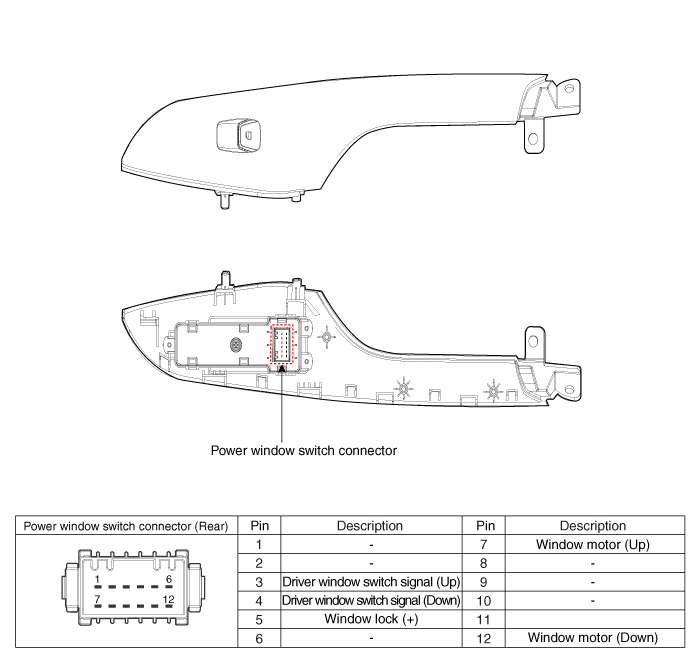

Rear Power Window Switch
