Replacement

1.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

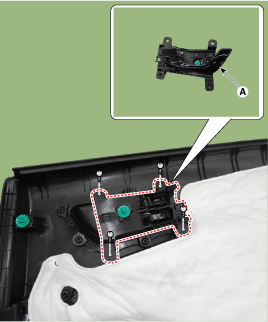

2.	After loosening the mounting screws, remove the rear door inside handle (A).

To install, reverse removal procedure.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin-type retainers).
