Hyundai Kona: ESP (Electronic Stability Program) System / Rear Wheel Speed Sensor Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Brake System / ESP (Electronic Stability Program) System / Rear Wheel Speed Sensor Components and components location

Components

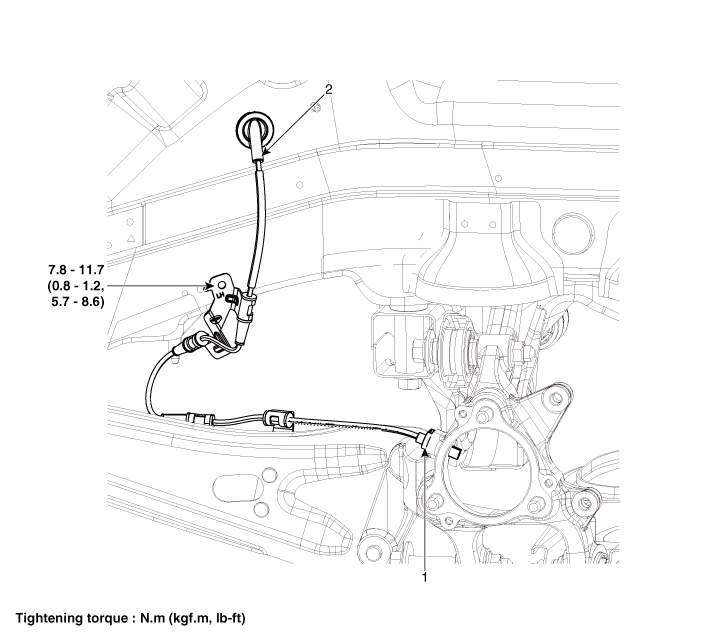

[Tortion beam axle type]

1. Front wheel speed sensor
2. Rear wheel speed sensor cable

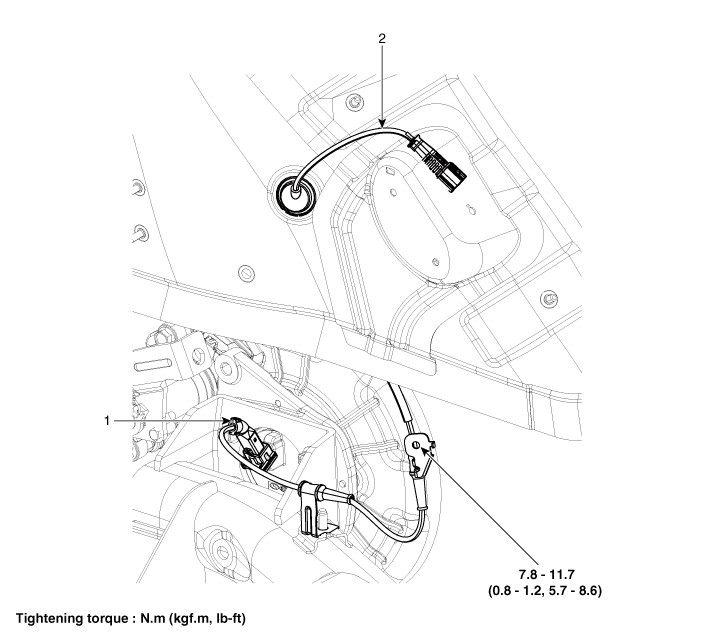

[Multi link type]

1. Front wheel speed sensor
2. Rear wheel speed sensor cable

Front Wheel Speed Sensor Repair procedures
Removal 1. Turn the ignition switch OFF and then disconnect the negative (-) battery cable. 2. Loosen the wheel nuts slightly. ...

Rear Wheel Speed Sensor Repair procedures
Removal [Tortion Beam Axle Type] 1. Turn the ignition switch OFF and then disconnect the negative (-) battery cable. 2. Loosen the ...
