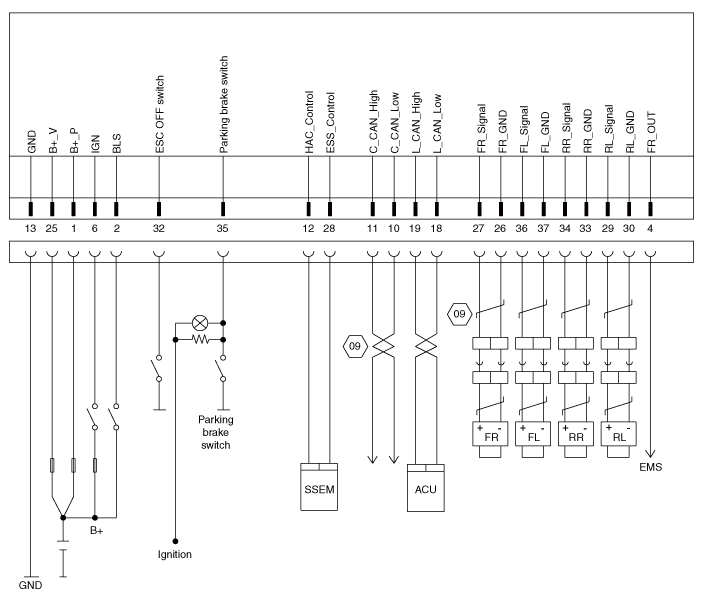

Schematic Diagrams

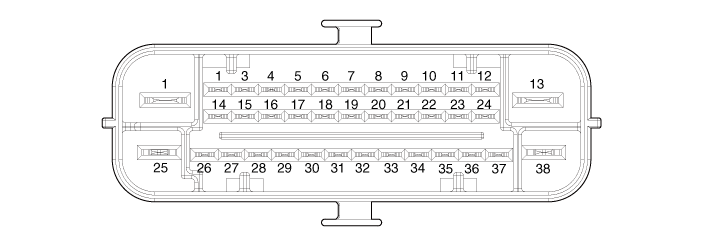

Terminal Function

Pin No
Description
Current 12V / 20C (AMP)
Voltage range (V)
1
 Voltage supply for pump motor
 ≤ 34
 0 - 18
2
 Brake light switch
 ≤ 22m
 0 - 18
4
 FR Wheel speed sensor power
 -
 0 - 18
6
 IGN 1
 ≤ 10m
 0 - 18
10
 C-CAN low
 44m typ.
 0 - 18
11
 C-CAN high
 44m typ.
 0 - 18
12
 HAC control
 -
 0 - 18
13
 Ground for recirculation pump
 -
 -
18
 L-CAN low
 44m typ.
 0 - 18
19
 L-CAN high
 44m typ.
 0 - 18
25
 Voltage supply for solenoid valves
 ≤ 17
 0 - 18
26
 FR Wheel speed sensor ground
 ≤ 34m
 0 - 18
27
 FR Wheel speed sensor signal
 ≤ 34m
 0 - 18
28
 ESS control
 -
 0 - 18
29
 RL Wheel speed sensor signal
 ≤ 34m
 0 - 18
30
 RL Wheel speed sensor ground
 ≤ 34m
 0 - 18
32
 VDC switch
 ≤ 18m
 0 - 18
33
 RR Wheel speed sensor signal
 ≤ 34m
 0 - 18
34
 RR Wheel speed sensor ground
 ≤ 34m
 0 - 18
35
 Parking brake switch
 ≤ 18m
 0 - 18
36
 FL Wheel speed sensor signal
 ≤ 34m
 0 - 18
37
 FL Wheel speed sensor ground
 ≤ 34m
 0 - 18
