Hyundai Kona: ISG (Idle Stop & Go) System / Starter Components and components location
Hyundai Kona (OS) 2018-2026 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Starter Components and components location

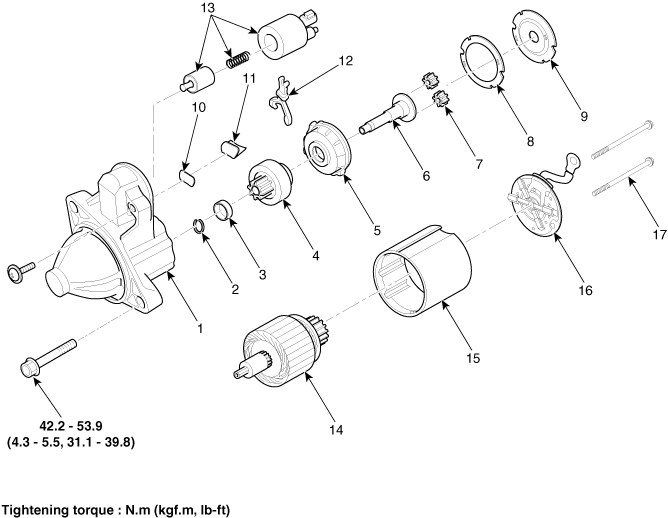

| Component |
| 1. Front
housing 2. Stop ring 3. Stopper 4. Overrun clutch assembly 5. Internal gear assembly 6. Planetary shaft assembly 7. Planetary gear assembly 8. Packing 9. Shield |
10. Lever
plate 11. Lever packing 12. Lever 13. Magnet switch assembly 14. Armature assembly 15. Yoke assembly 16. Brush holder assembly 17. Through bolt |
Starter Specifications
Specification
Item
Specification
Rated voltage
12V, 1.3 kw
The number of pinion teeth
11
...
Starter Schematic diagrams
Circuit Diagram
...
