Hyundai Kona: Brake System / Stop Lamp Switch Components and components location

Hyundai Kona (OS) 2018-2020 Service Manual / Brake System / Brake System / Stop Lamp Switch Components and components location

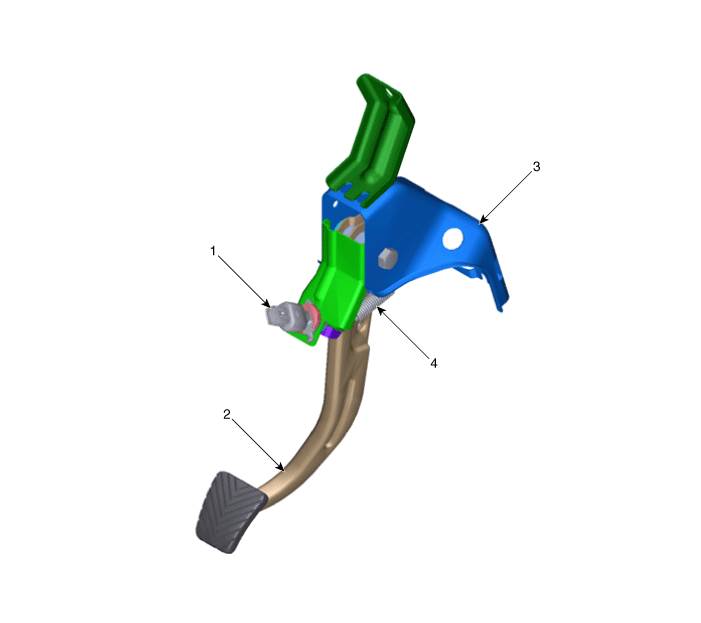

Components

1. Stop lamp switch
2. Brake pedal arm assembly
3. Brake member assembly
4. Return spring

Brake Pad Repair procedures
Replacement Front Brake Pad 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Re ...

Stop Lamp Switch Schematic diagrams
Schematic Diagram System circuit diagram Terminal function Teminal Description 1 IGN1 ...
