Hyundai Kona (OS) 2018-2021 Service Manual / Brake System / Brake System / Stop Lamp Switch Schematic diagrams

Schematic Diagram

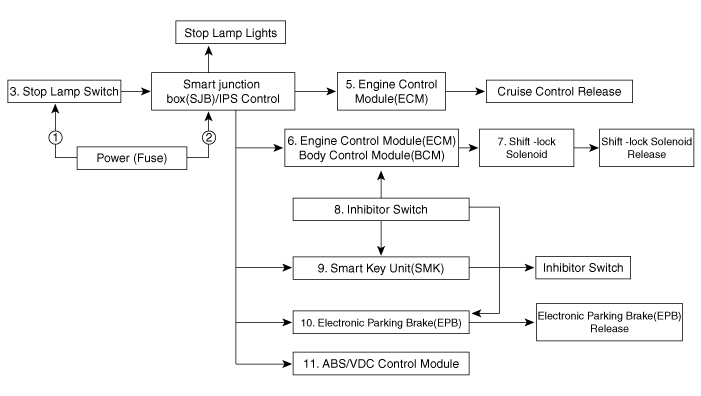

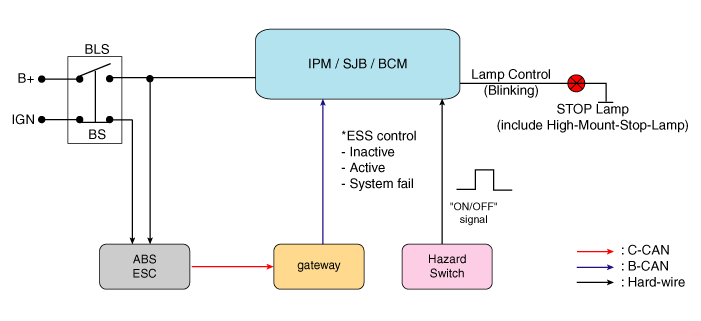

System circuit diagram

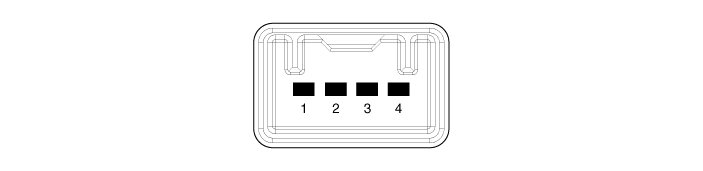

Terminal function

Teminal
Description
1
IGN1
2
Engine Control Module (ECM)
3
B+
4
Stop Lmap

Stop Lamp Switch Components and components location
Components 1. Stop lamp switch 2. Brake pedal arm assembly 3. Brake member assembly 4. Return spring ...

Stop Lamp Switch Troubleshooting
Troubleshooting 1. Part diagnosis Items Cause Symptom Swi ...
