Hyundai Kona: Timing System / Timing Chain Components and components location

Hyundai Kona (OS) 2018-2021 Service Manual / Engine Mechanical System / Timing System / Timing Chain Components and components location

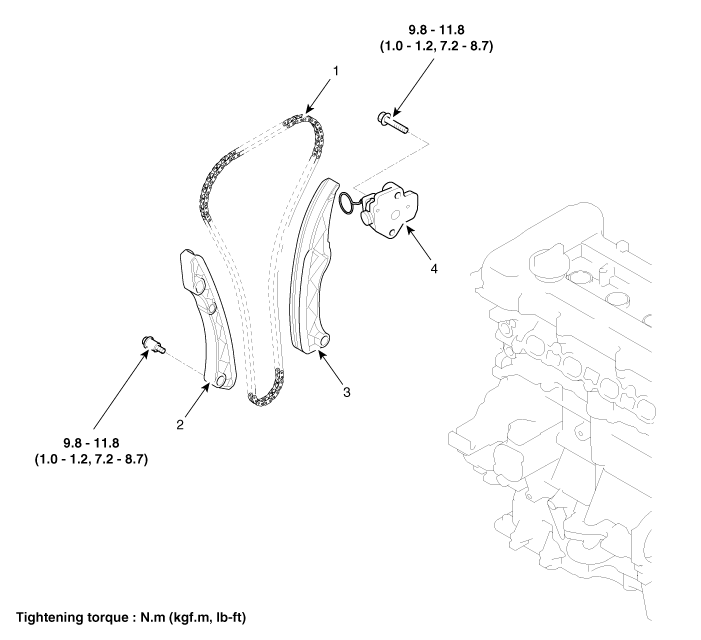

Components

1. Timing chain
2. Timing chain guide
3. Timing chain arm
4. Timing chain auto tensioner

Timing Chain Cover & Oil Pump Assembly Repair procedures
Removal    • Use fender covers to avoid damaging painted surfaces. ...

Timing Chain Repair procedures
Removal 1. Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover. 2. Remov ...
