Hyundai Kona: Wipers and washers / Windshield washers
.png)

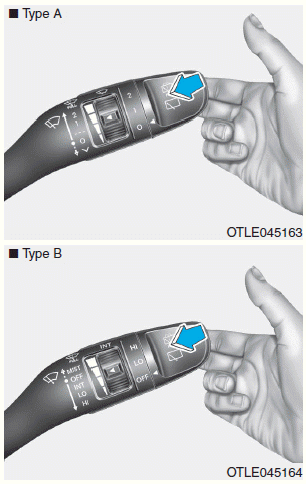

In the OFF (O) position, pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers 1-3 cycles.
The spray and wiper operation will continue until you release the lever.
If the washer does not work, you may need to add washer fluid to the washer fluid reservoir.
If equipped with the Headlamp
Washer, washer fluid will be sprayed on the headlamp at the same time you operate the windshield washer when:
1. The ignition switch is in the ON position.
2. The light switch is in the headlamp position.
WARNING
When the outside temperature is below freezing, ALWAYS warm the windshield using the defroster to prevent the washer fluid from freezing on the windshield and obscuring your vision which could result in an accident and serious injury or death.
CAUTION
- To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.
- To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry.
- To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually.
- To prevent possible damage to the wipers and washer system, use anti-freezing washer fluids in the winter season or cold weather.
Windshield wipers
Operates as follows when the ignition switch is turned ON.
/MIST : For a single wiping cycle,
move the lever down ( ) or up (MIST) and release it. The wipers will operate continuously
if the lever i ...
Rear window wiper and washer switch
The rear window wiper and washer switch is located at the end of the wiper and
washer switch lever.
Turn the switch to the desired position to operate the rear wiper and washer.
2 / HI – High wipe ...
