Hyundai Kona: Cooling System / Water Temperature Control Assembly Components and components location

Hyundai Kona (OS) 2018-2022 Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components and components location

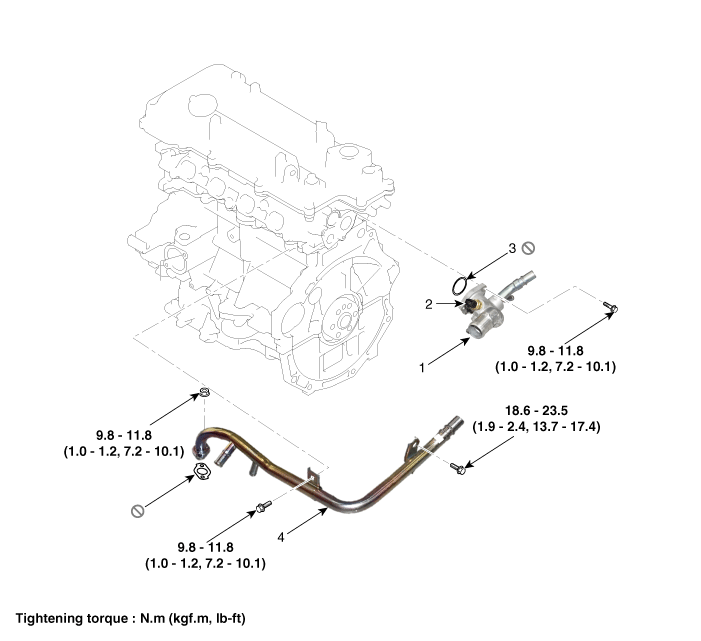

Components

1. Water temperature control assembly
2. Water temperature sensor
3. Heater pipe gasket
4. Heater pipe
