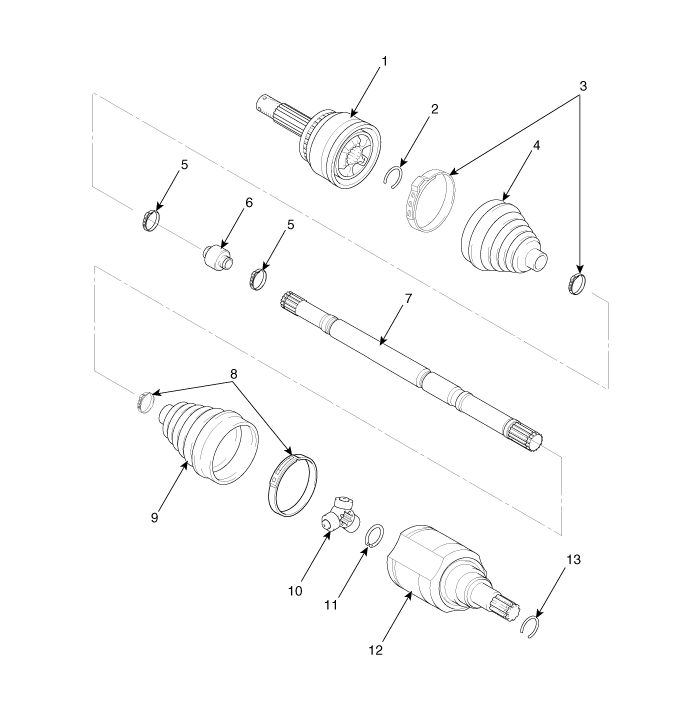

Components (1)

[Gamma 1.6 T-GDI, Nu 2.0 MPI]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

Components (2)

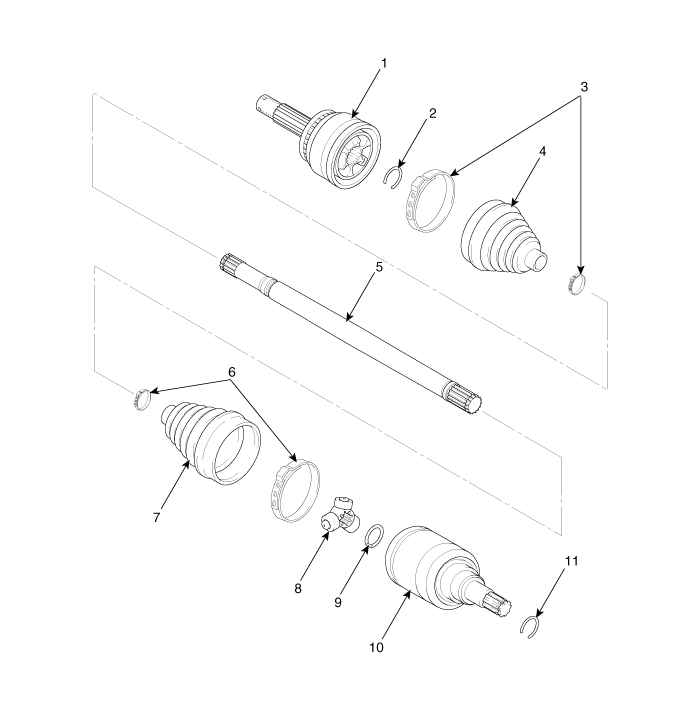

[Kappa 1.0 T-GDI]

[LH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ case
11. Circlip

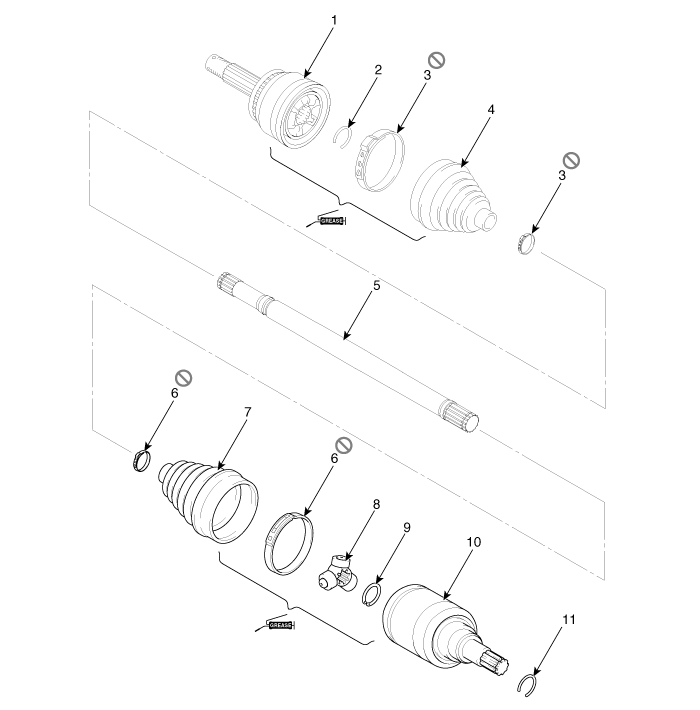

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

Dynamic Damper Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") 2. Remove the TJ joint assem ...

BJ Boot Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") 2. Remove the TJ joint assem ...
